A good PCB layout for the NE592N14 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure proper biasing, the NE592N14 requires a voltage supply of 5V to 15V, with a recommended operating voltage of 12V. The device also requires a bias current of 10mA to 20mA, which can be achieved using a voltage divider network or a dedicated bias circuit.
The maximum power dissipation of the NE592N14 is 1.5W, which is limited by the device's thermal resistance and the maximum junction temperature of 150°C. Proper heat sinking and thermal management are essential to ensure reliable operation.
While the NE592N14 is primarily designed for linear applications, it can be used in switching applications with some caution. However, the device's switching speed is limited, and it may not be suitable for high-frequency switching applications. Additionally, the device's output stage may not be able to handle high-current switching, and external switching devices may be required.
The NE592N14 is sensitive to electrostatic discharge (ESD), and proper precautions should be taken to prevent ESD damage. This includes using ESD-safe handling and storage procedures, using ESD protection devices such as TVS diodes or ESD protection arrays, and ensuring that the device is properly grounded during handling and assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NE592N14 Overview

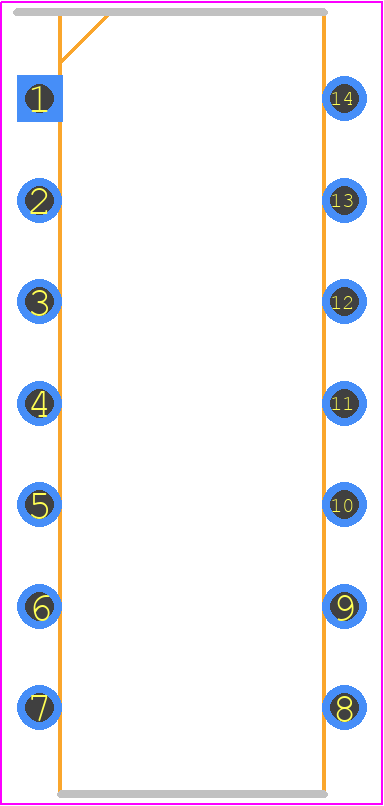

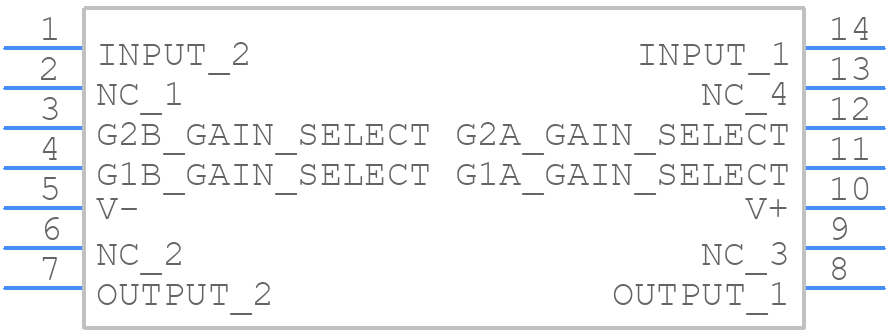

Use the download button to access the NE592N14 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NE592,
or try a keyword search, such as Audio/Video Amplifiers
