- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NE612D
- Part Number NE612D
- Manufacturer Yageo Group
- Pin Count 8
- Part Category Crystal or Oscillator
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SO8
- Released Date Aug 16, 2020
- Last Modified Date Feb 4, 2026 2:20 PM UTC
- Pinout / Pin List Click Here (Member Only)
NE612D Details
-
Manufacturer Part Number:
NE612D
-
Part Life Cycle Code:
Obsolete
-
Manufacturer:
YAGEO Corporation
-
YTEOL:
0
-
Construction:
COMPONENT
-
Operating Temperature-Max:
70 °C
-
RF/Microwave Device Type:
DOUBLE BALANCED
Trust Checks
Community Provided
System Verified
Community Approved
NE612D Overview

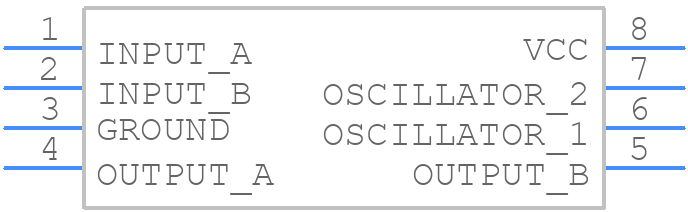

Use the download button to access the NE612D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NE612,
or try a keyword search, such as RF/Microwave Mixers
