- Part Number NEO-6M-0-001
- Manufacturer u-blox
- Pin Count 24
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - NEO-6M
- Released Date Feb 10, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NEO-6M-0-001 Details
-
Manufacturer Part Number:
NEO-6M-0-001
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
LCC-24
-
HTS Code:
8542.39.00.01
-
Manufacturer:
u-blox AG
-
YTEOL:
0
-
JESD-30 Code:
R-PDSO-N24
-
Length:
16 mm
-
Moisture Sensitivity Level:
4
-
Number of Functions:
1
NEO-6M-0-001 Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply power to the module, then wait for at least 100ms before sending any commands or data. This allows the module to complete its internal initialization.
-
The NEO-6M-0-001 has an internal antenna, but you can use an external antenna by connecting it to the ANT pin. You'll need to configure the module to use the external antenna by sending the appropriate command (e.g. $PUBX,40,ANT,1,1,0,0,0,0*29) using the UBX protocol.
-
The maximum update rate of the NEO-6M-0-001 is 10 Hz, but this can be adjusted using the UBX protocol. For example, you can set the update rate to 5 Hz by sending the command $PUBX,00,101,5,0,0,0,0,0*29.
-
You can enable or disable WAAS/EGNOS by sending the appropriate command using the UBX protocol. For example, to enable WAAS, send the command $PUBX,00,101,1,1,0,0,0,0*29, and to disable it, send $PUBX,00,101,1,0,0,0,0,0*29.
-
The typical current consumption of the NEO-6M-0-001 is around 50-60 mA, but this can vary depending on the operating mode and the presence of an external antenna.
Trust Checks
Expert Contribution
System Verified
Community Approved
NEO-6M-0-001 Overview

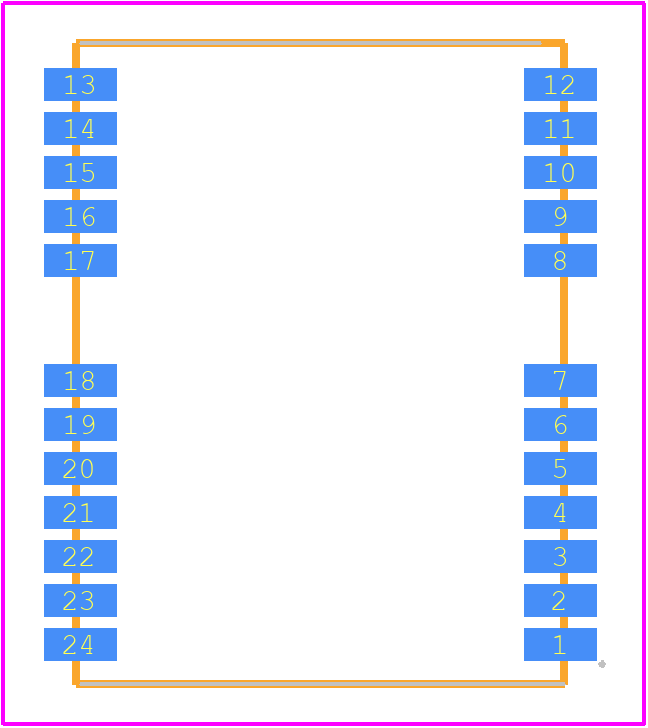

Use the download button to access the NEO-6M-0-001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NEO-6,
or try a keyword search, such as Other Telecom ICs
About u-blox
u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
