NEO-7M-0-000 - u-blox

Description: Series RF Receiver GLONASS, GNSS, GPS 1.575GHz -161dBm 1.65V ~ 3.6V -40°C ~ 85°C

Download NEO-7M-0-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

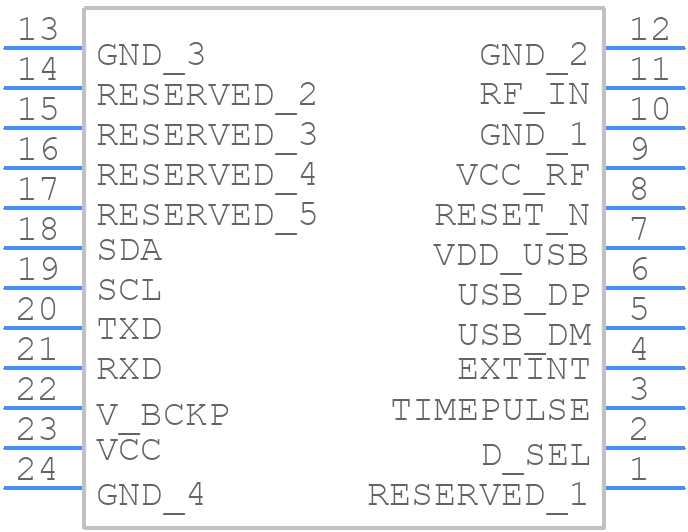

NEO-7M-0-000 - u-blox - PCB symbol
click to zoom
PCB Footprints

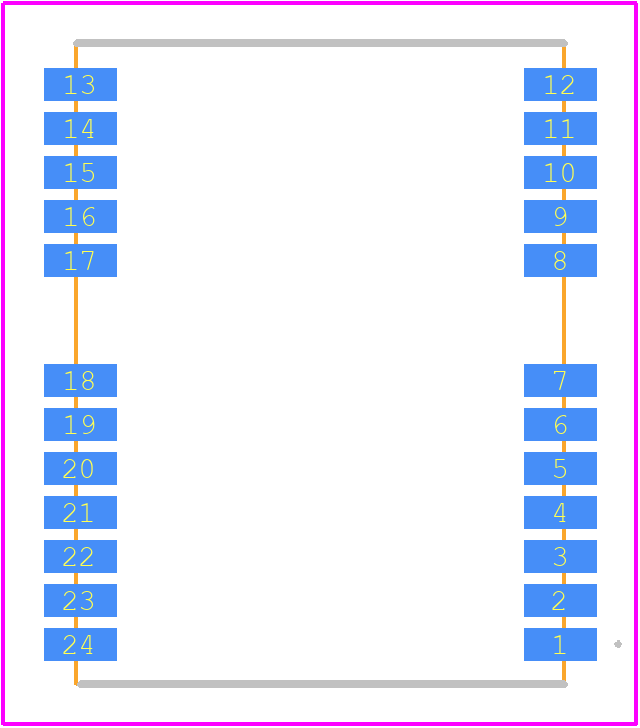

NEO-7M-0-000 - u-blox PCB footprint - Other - Other - NEO-7M-0-000-2
click to zoom
3D Models
NEO-7M-0-000 - u-blox - 3D model - Other - NEO-7M-0-000-2
click to zoom

NEO-7M-0-000 Details

  • Manufacturer Part Number:

    NEO-7M-0-000

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LCC-24

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    u-blox AG

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-N24

  • Length:

    16 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC24/28,.48,43

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100; ISO-16750; TS 16949

  • Seated Height-Max:

    2.6 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    GNSS Module

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.1 mm

  • Terminal Position:

    DUAL

  • Width:

    12.2 mm

NEO-7M-0-000 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the module's VCC pin first, followed by the enable pin (EN) and then the reset pin (RST). This ensures proper initialization of the module.
  • The NEO-7M-0-000 can be configured for different baud rates using the UBX-CFG-NAV5 command. The module supports baud rates from 4800 to 921600 bps.
  • The internal oscillator of the NEO-7M-0-000 has an accuracy of ±10 ppm over the operating temperature range of -40°C to +85°C.
  • Yes, the NEO-7M-0-000 can be used with an external antenna. The module has a built-in antenna switch that allows the use of an external antenna. The external antenna must be designed to operate at the GPS frequency of 1575.42 MHz.
  • The firmware of the NEO-7M-0-000 can be updated using the u-blox u-center software. The software provides a firmware update tool that allows users to upload new firmware to the module.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NEO-7M-0-000 Overview

Use the download button to access the NEO-7M-0-000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NEO-7, or try a keyword search, such as Other Telecom ICs

About u-blox

u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
