NEO-F10N-00B - u-blox

Description: GNSS / GPS Modules u-blox F10 GNSS module Flash, TCXO, SAW, LNA LCC, 12x16 mm, 250 pcs/reel

Download NEO-F10N-00B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

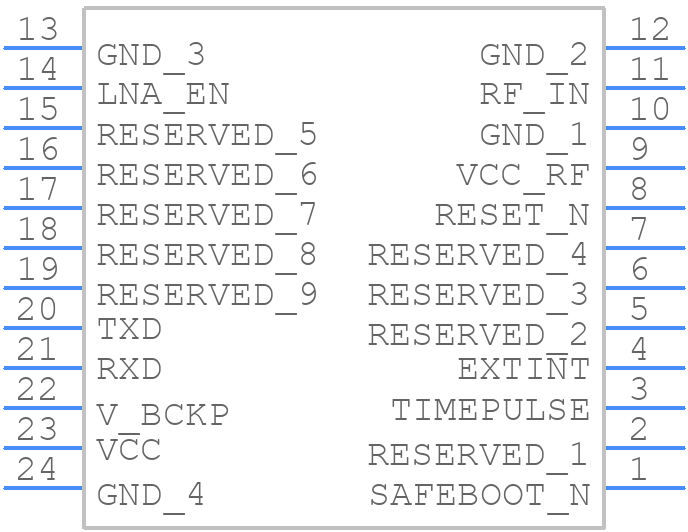

NEO-F10N-00B - u-blox - PCB symbol
click to zoom
PCB Footprints

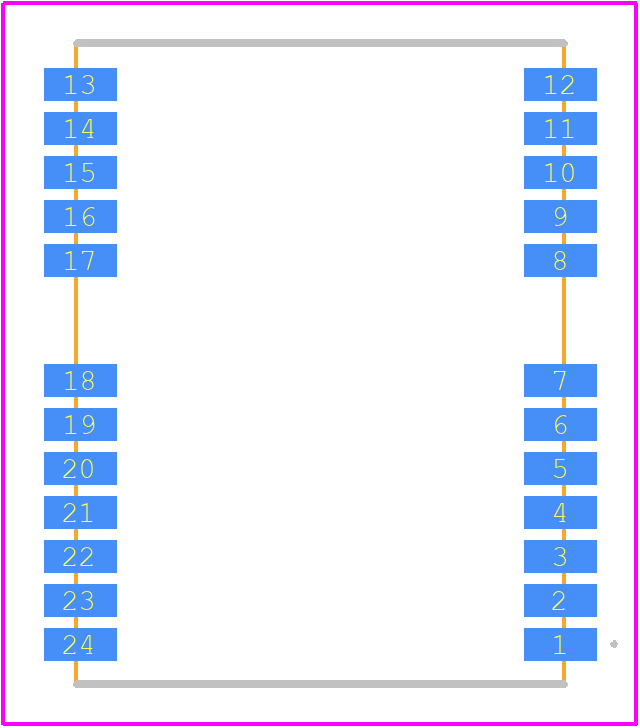

NEO-F10N-00B - u-blox PCB footprint - Other - Other - NEO-F10N-00B-4
click to zoom
3D Models
NEO-F10N-00B - u-blox - 3D model - Other - NEO-F10N-00B-4
click to zoom

NEO-F10N-00B Details

  • Manufacturer Part Number:

    NEO-F10N-00B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-24

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • JESD-30 Code:

    R-PDSO-N24

  • Length:

    16 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC24/28,.48,43

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    2.6 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    GNSS Module

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.1 mm

  • Terminal Position:

    DUAL

  • Width:

    12.2 mm

NEO-F10N-00B Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply VCC, then VBackup (if used), and finally the reset signal (RST). This ensures proper initialization of the module.
  • The NEO-F10N-00B has an internal antenna switch, which can be configured using the UBX-CFG-ANT command. The antenna type and gain can be set using the UBX-CFG-RATE command.
  • The maximum update rate for the NEO-F10N-00B is 10 Hz, but this can be limited by the communication interface (e.g., UART, SPI, or I2C) and the host system's processing capabilities.
  • Yes, the NEO-F10N-00B supports custom baud rates, but this requires configuration using the UBX-CFG-PRT command. Note that not all baud rates are supported, and some may require additional configuration or hardware modifications.
  • The NEO-F10N-00B has built-in anti-spoofing and anti-jamming features, such as signal quality monitoring and spoofing detection. These features can be enabled and configured using the UBX-CFG-RXM command.
