- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NEO-M8M-0-10
- Part Number NEO-M8M-0-10
- Manufacturer u-blox
- Pin Count 24
- Part Category Integrated Circuit
- Package Category Other

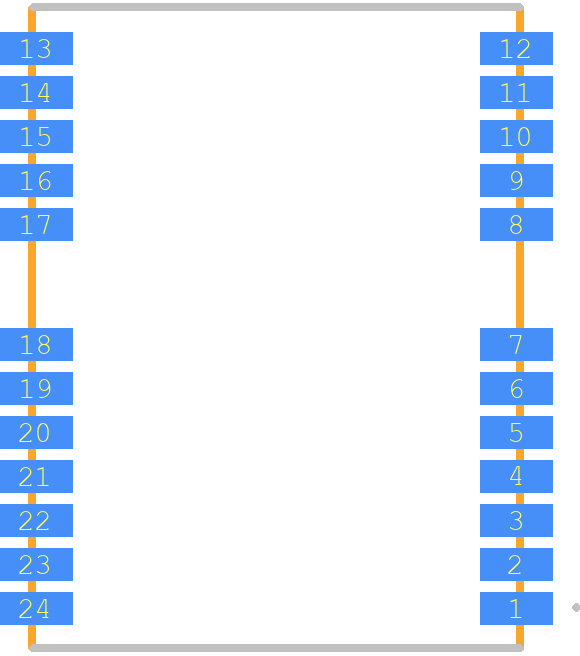

- Footprint Name Other - NEO-M8T
- Released Date Aug 3, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NEO-M8M-0-10 Details
-
Manufacturer Part Number:
NEO-M8M-0-10
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
Package Description:
LCC-24
-
HTS Code:
8542.39.00.01
-
Manufacturer:
u-blox AG
-
YTEOL:
0.4
-
JESD-30 Code:
R-PDSO-N24
-
Length:
16 mm
-
Moisture Sensitivity Level:
4
-
Number of Functions:
1
NEO-M8M-0-10 Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to first apply power to the module, then wait for at least 100 ms before applying the enable signal (EN pin). This ensures that the module is properly initialized.
-
The NEO-M8M-0-10 can be configured using the u-blox UBX protocol, which allows for setting various GPS modes and parameters. Refer to the u-blox documentation for specific commands and syntax.
-
The maximum update rate of the NEO-M8M-0-10 is 10 Hz. To configure the update rate, use the UBX-CFG-RATE command to set the measurement rate and navigation rate to the desired value (e.g., 10 Hz).
-
The NEO-M8M-0-10 communicates via a UART interface. Connect the module's TX pin to the host's RX pin, and the module's RX pin to the host's TX pin. Use a level shifter if necessary to match the voltage levels.
-
The typical current consumption of the NEO-M8M-0-10 is around 50 mA. To reduce power consumption, use the module's power-saving modes, such as the 'standby' mode, or use the UBX-CFG-PM command to configure the power management settings.
Trust Checks
Expert Contribution
System Verified
Community Approved
NEO-M8M-0-10 Overview
Use the download button to access the NEO-M8M-0-10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NEO-M,
or try a keyword search, such as Other Telecom ICs
About u-blox
u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
