NEO-M8Q-0 - u-blox

Description: NEO-M8 RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS 1.575GHz -167dBm

Download NEO-M8Q-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

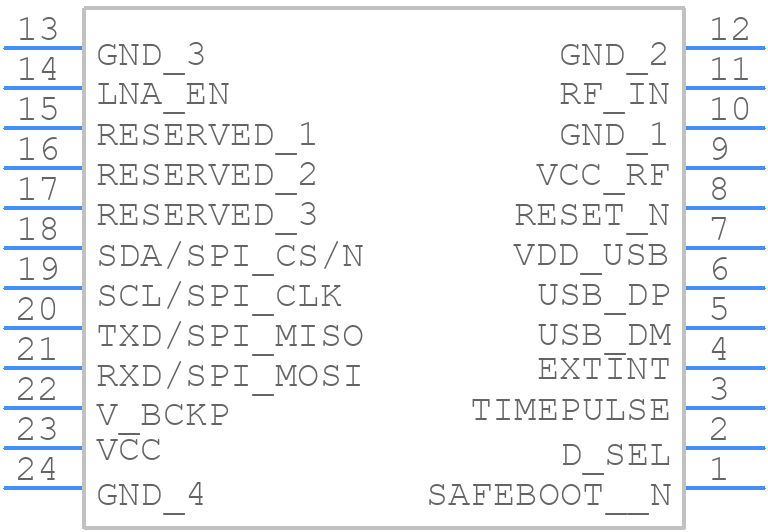

NEO-M8Q-0 - u-blox - PCB symbol
click to zoom
PCB Footprints

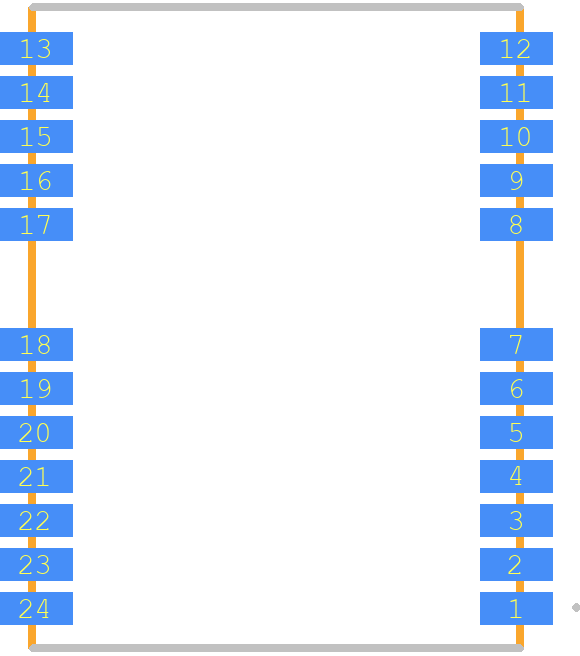

NEO-M8Q-0 - u-blox PCB footprint - Other - Other - NEO-M8U
click to zoom
3D Models
NEO-M8Q-0 - u-blox - 3D model - Other - NEO-M8U
click to zoom

NEO-M8Q-0 Details

  • Manufacturer Part Number:

    NEO-M8Q-0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-24

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • JESD-30 Code:

    R-PDSO-N24

  • Length:

    16 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SON

  • Package Equivalence Code:

    SOLCC24/28,.48,43

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100; ISO-16750; TS 16949

  • Seated Height-Max:

    2.6 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    GNSS Module

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.1 mm

  • Terminal Position:

    DUAL

  • Width:

    12.2 mm

NEO-M8Q-0 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to first apply power to the module, then wait for at least 100 ms before applying the enable signal (EN pin). This ensures that the module is properly initialized.
  • The NEO-M8Q-0 can be configured using the u-blox UBX protocol, which allows for setting various GPS modes and parameters. Refer to the u-blox protocol specification for details.
  • The maximum update rate of the NEO-M8Q-0 is 10 Hz. To achieve this, set the measurement rate to 100 ms using the UBX-CFG-RATE command, and ensure that the module is properly configured for high-speed operation.
  • The NEO-M8Q-0's I/O voltage levels are 1.8V or 3.3V, depending on the configuration. Ensure that your system's I/O voltage levels match the module's voltage levels, or use level shifters or voltage translators to interface with 5V systems.
  • The NEO-M8Q-0 is designed to be resistant to EMI, but it's still important to follow proper PCB design and layout practices to minimize EMI effects. Use shielding, grounding, and decoupling capacitors to ensure reliable operation.
