NEO-M8U-06B - u-blox

Description: NEO-M8U RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS 1.575GHz -160dBm

Download NEO-M8U-06B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

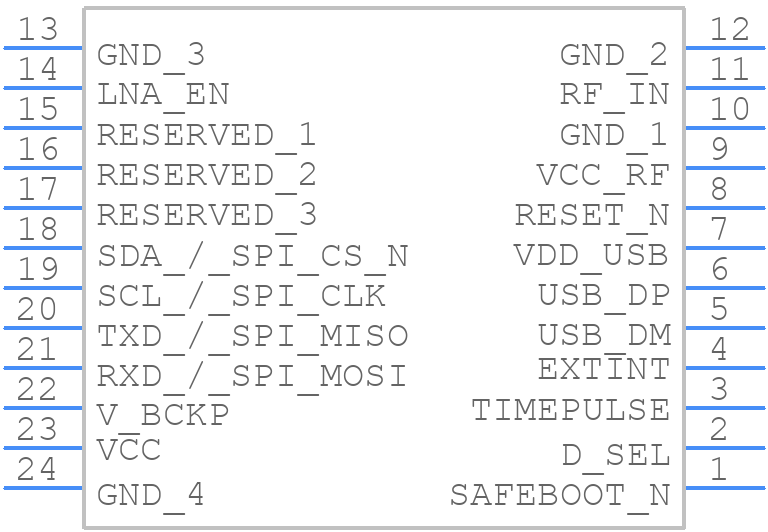

NEO-M8U-06B - u-blox - PCB symbol
click to zoom
PCB Footprints

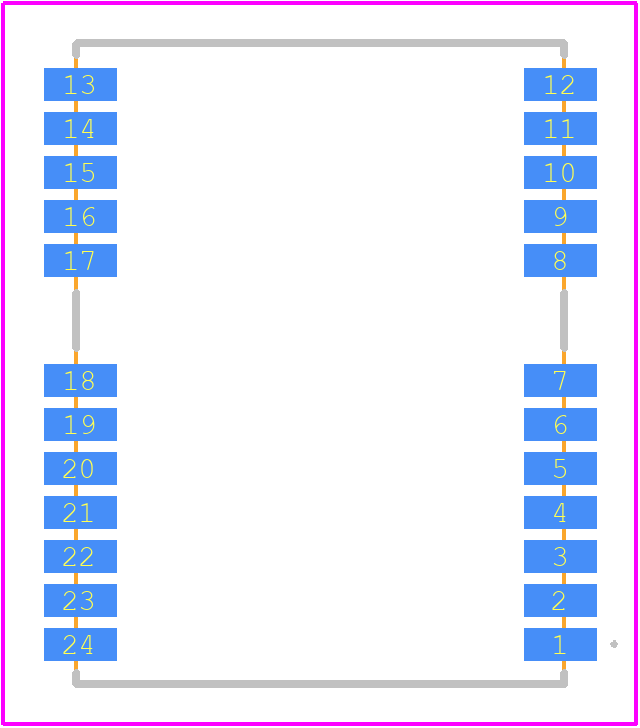

NEO-M8U-06B - u-blox PCB footprint - Other - Other - 24-SMD Module
click to zoom
3D Models
NEO-M8U-06B - u-blox - 3D model - Other - 24-SMD Module
click to zoom

NEO-M8U-06B Details

  • Manufacturer Part Number:

    NEO-M8U-06B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-24

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • JESD-30 Code:

    R-XDMA-N24

  • Length:

    16 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    2.6 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Width:

    12.2 mm

NEO-M8U-06B Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to first apply power to the module, then wait for at least 100 ms before sending any commands or data. This allows the module to complete its internal self-test and initialization.
  • To use an external antenna, connect the antenna to the RF_IN pin and set the ANT_EXT bit in the CFG_ANTENA register (0x27) to 1. Also, ensure that the antenna is properly matched to the module's 50-ohm input impedance.
  • The maximum update rate for the NEO-M8U is 18 Hz, but this can be limited by the host system's ability to process the data. The update rate can be set using the CFG_RATE register (0x1B).
  • To enable SBAS support, set the CFG_SBAS register (0x24) to 1. This enables the module to use SBAS corrections to improve positioning accuracy.
  • The typical current consumption of the NEO-M8U is around 50-60 mA during continuous operation, but this can vary depending on the specific use case and configuration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NEO-M8U-06B Overview

Use the download button to access the NEO-M8U-06B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NEO-M, or try a keyword search, such as Other Telecom ICs

About u-blox

u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
