NF4EB-24V - Panasonic

Description: RELAY GEN PURPOSE 4PDT 2A 24VDC

Download NF4EB-24V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

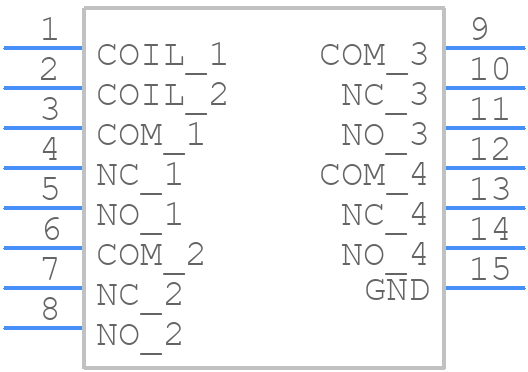

NF4EB-24V - Panasonic - PCB symbol
click to zoom
PCB Footprints

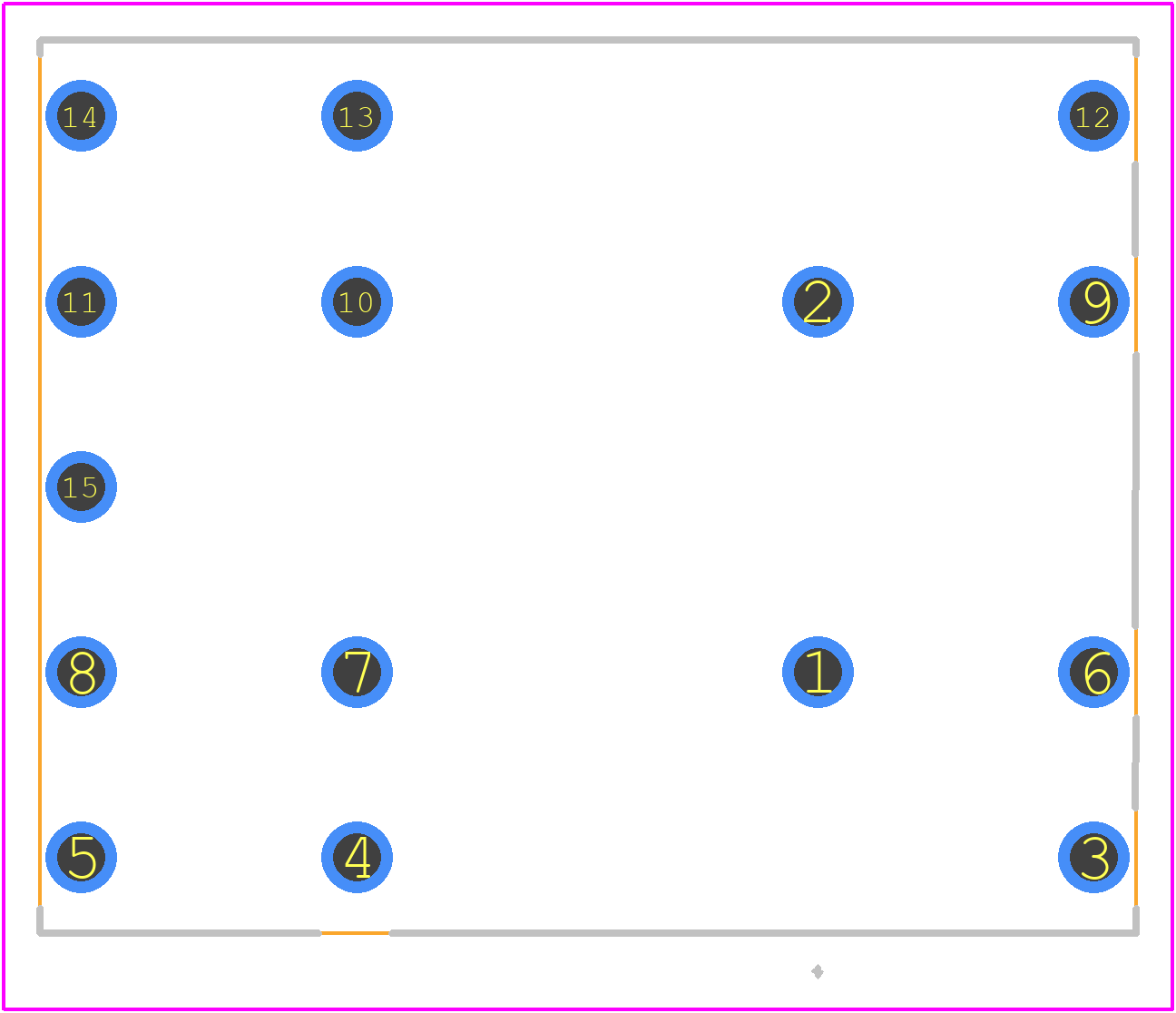

NF4EB-24V - Panasonic PCB footprint - Other - Other - NF4EB-24V-1
click to zoom
3D Models
NF4EB-24V - Panasonic - 3D model - Other - NF4EB-24V-1
click to zoom

NF4EB-24V Details

  • Manufacturer Part Number:

    NF4EB-24V

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Body Breadth:

    24.6 mm

  • Body Height:

    10.8 mm

  • Body Length or Diameter:

    30.2 mm

  • Coil Current(DC)-Max:

    0.02 A

  • Coil Operate Voltage(DC):

    19.2 V

  • Coil Power:

    480 mW

  • Coil Release Voltage(DC):

    2.4 V

  • Coil Resistance:

    1200 Ω

  • Coil Voltage(DC)-Max:

    24 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    2A@220VAC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact (DC) Max Rating R Load:

    2A@220VDC

  • Contact Voltage(AC)-Max:

    220 V

  • Contact Voltage(DC)-Max:

    220 V

  • Contact/Output Supply Type:

    AC/DC

  • Electrical Life:

    200000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT MOUNT

  • Operate Time:

    16.5 ms

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    30.2mm x 24.6mm x 10.8mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    4PDT

  • Relay Type:

    WET REED RELAY

  • Release Time:

    11.5 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER
