Description:Low-Loss, Short-Circuit Rated IGBTs (FS4); Built-In Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout; Very Low Thermal Resistance Using Al2O3 DBC Substrate; Separate Open-Emitter Pins from Low-Side IGBTs; Single-Grounded Power Supply; LVIC Temperature-Sensing Built-In; Isolation Rating: 2500 Vrms / 1 min.; 650 V - 50 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or heat sink, using thermal vias to dissipate heat, and keeping the surrounding area clear of other components to allow for airflow.
To ensure reliable operation at high temperatures, follow the recommended operating conditions, use a suitable heat sink, and consider derating the device's power handling capabilities according to the temperature derating curve provided in the datasheet.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's essential to ensure the device operates within the recommended temperature range to maintain reliability and performance.
To handle ESD protection, follow proper handling and storage procedures, use ESD-protective packaging and materials, and consider implementing ESD protection circuits or devices in the design to prevent damage from electrostatic discharge.
The recommended soldering conditions for the NFAL5065L4B include a peak temperature of 260°C, a soldering time of 10 seconds or less, and using a solder with a melting point above 217°C. It's essential to follow the recommended soldering profile to prevent damage to the device.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NFAL5065L4B Overview

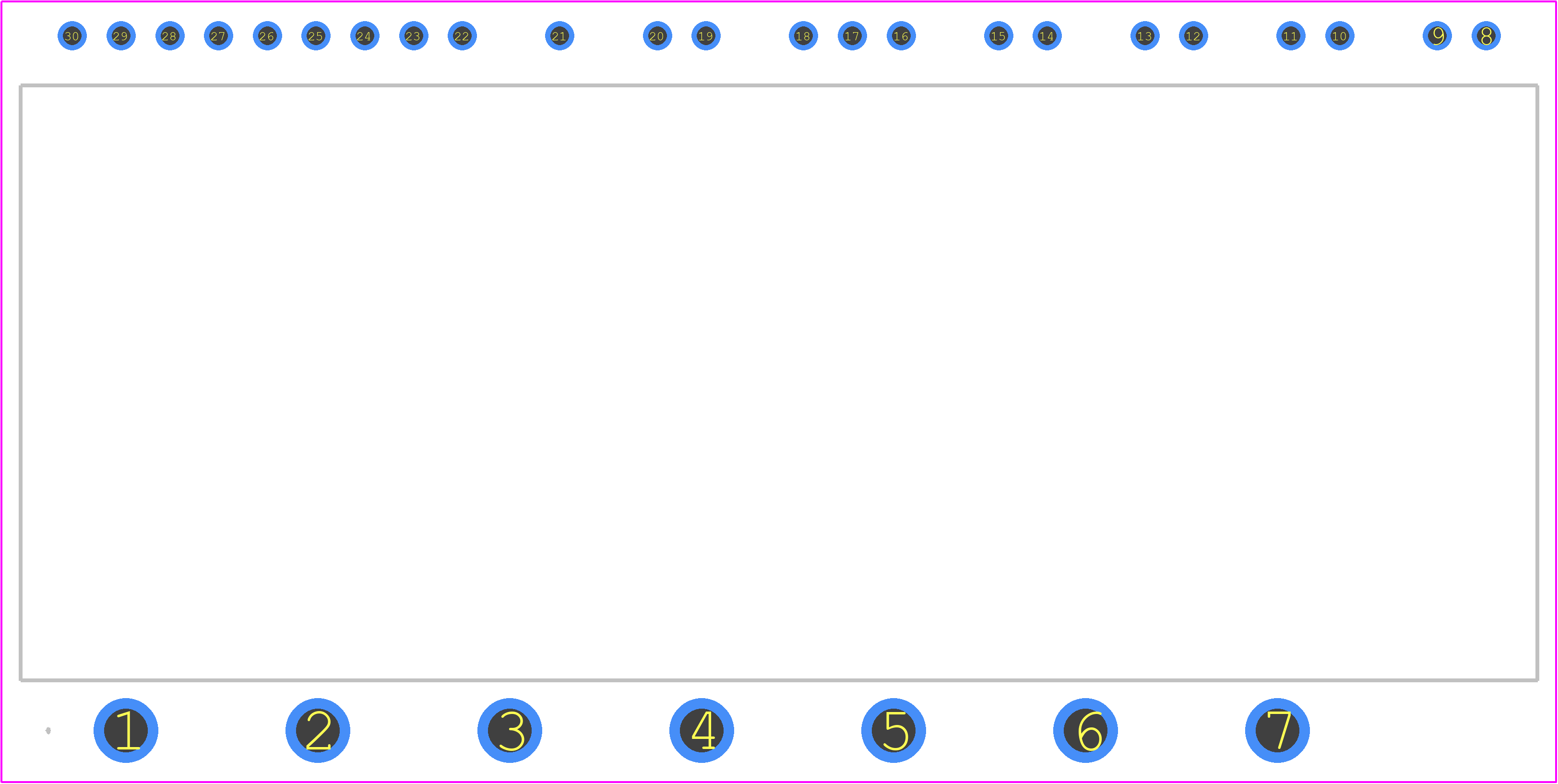

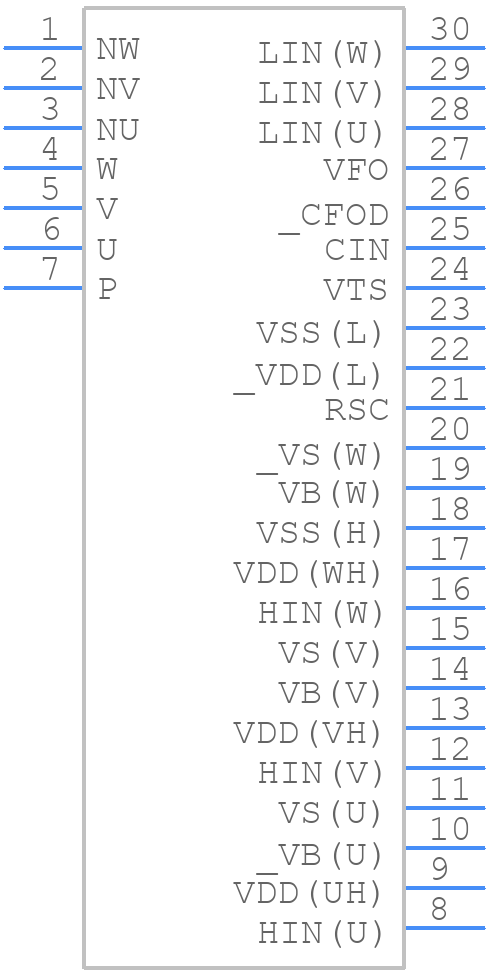

Use the download button to access the NFAL5065L4B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFAL5,
or try a keyword search, such as Motion Control Electronics
