Part Image

NFAM2512L7BL - onsemi

Description: 1200V 25A 3-Phase FS7 IGBT Inverter, Including Control ICs for Gate Drive and Protections; Low-Loss, Short-Circuit Rated IGBTs (FS7); Built-in Under-voltage Protection (UVP); Built-In Bootstrap Diodes/Resistors; Single-Grounded Power Supply; UL Certification: E209204; This is a PbFree Device

Download NFAM2512L7BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

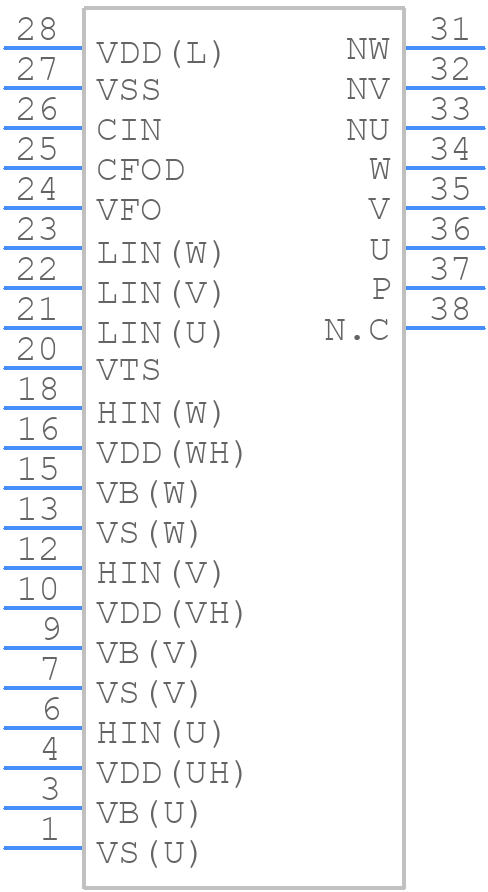

NFAM2512L7BL - onsemi - PCB symbol
click to zoom
PCB Footprints

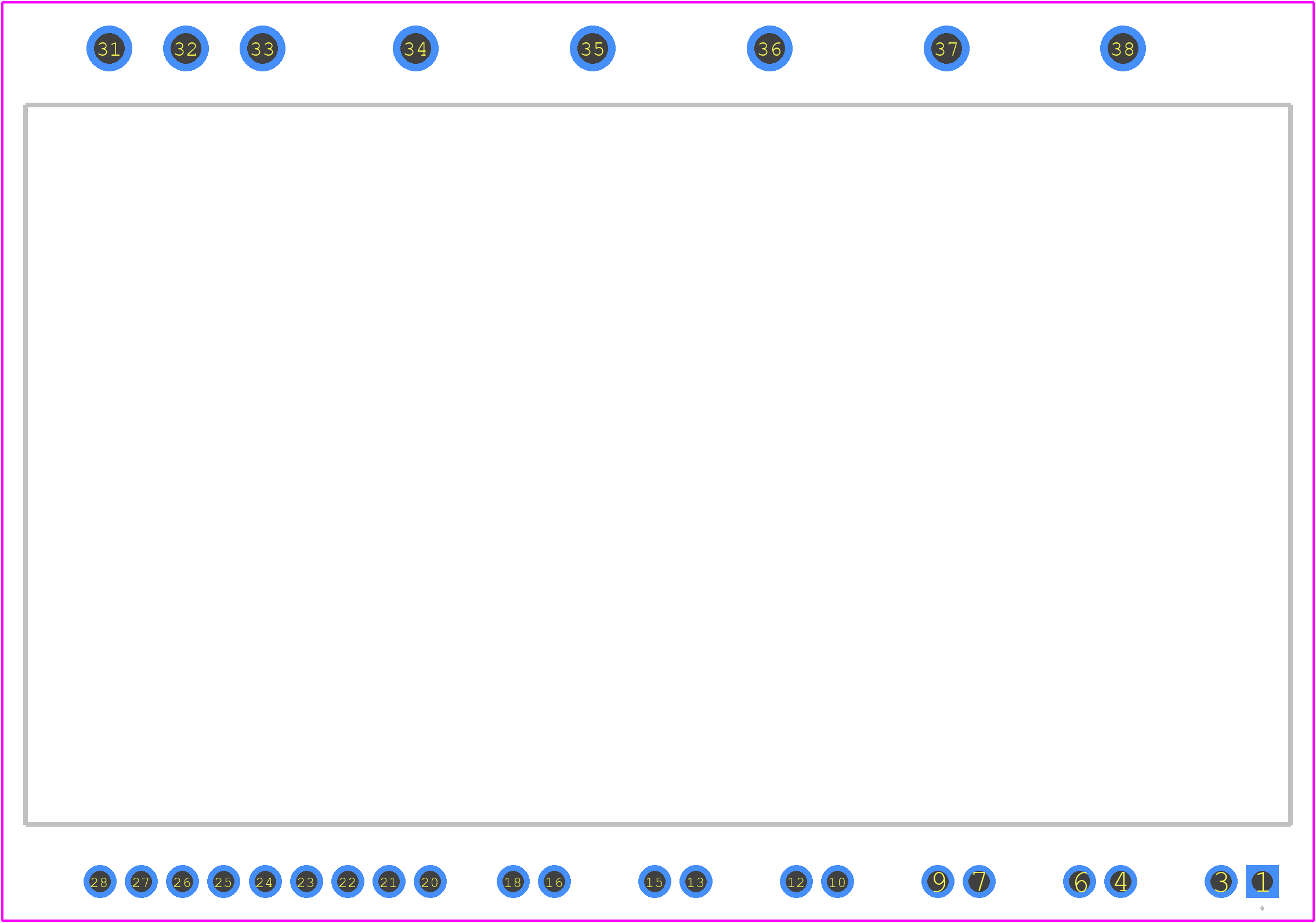

NFAM2512L7BL - onsemi PCB footprint - Other - Other - DIP39, 54.50x31.00x5.60, 1.78P EP−2 CASE MODGX ISSUE B
click to zoom
3D Models
NFAM2512L7BL - onsemi - 3D model - Other - DIP39, 54.50x31.00x5.60, 1.78P EP−2 CASE MODGX ISSUE B
click to zoom

NFAM2512L7BL Details

  • Manufacturer Part Number:

    NFAM2512L7BL

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    INTELLIGENT POWER MODULE(IPM)

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NFAM2512L7BL Overview

Use the download button to access the NFAM2512L7BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFAM2, or try a keyword search, such as Motion Control Electronics
