NFAM2512SCBUT - onsemi

Description: Power Driver Module MOSFET 3 Phase Inverter 1.2 kV 70 A 39-PowerDIP Module (1.413", 35.90mm), 30 Leads

Download NFAM2512SCBUT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

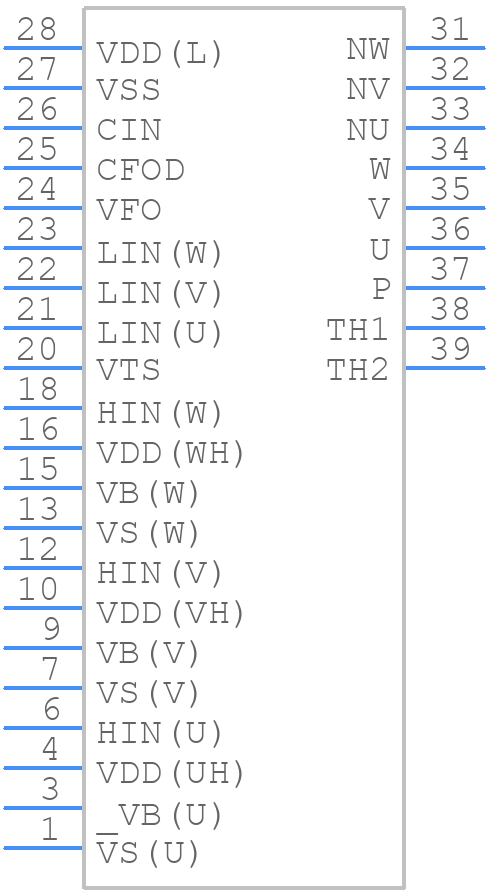

NFAM2512SCBUT - onsemi - PCB symbol
click to zoom
PCB Footprints

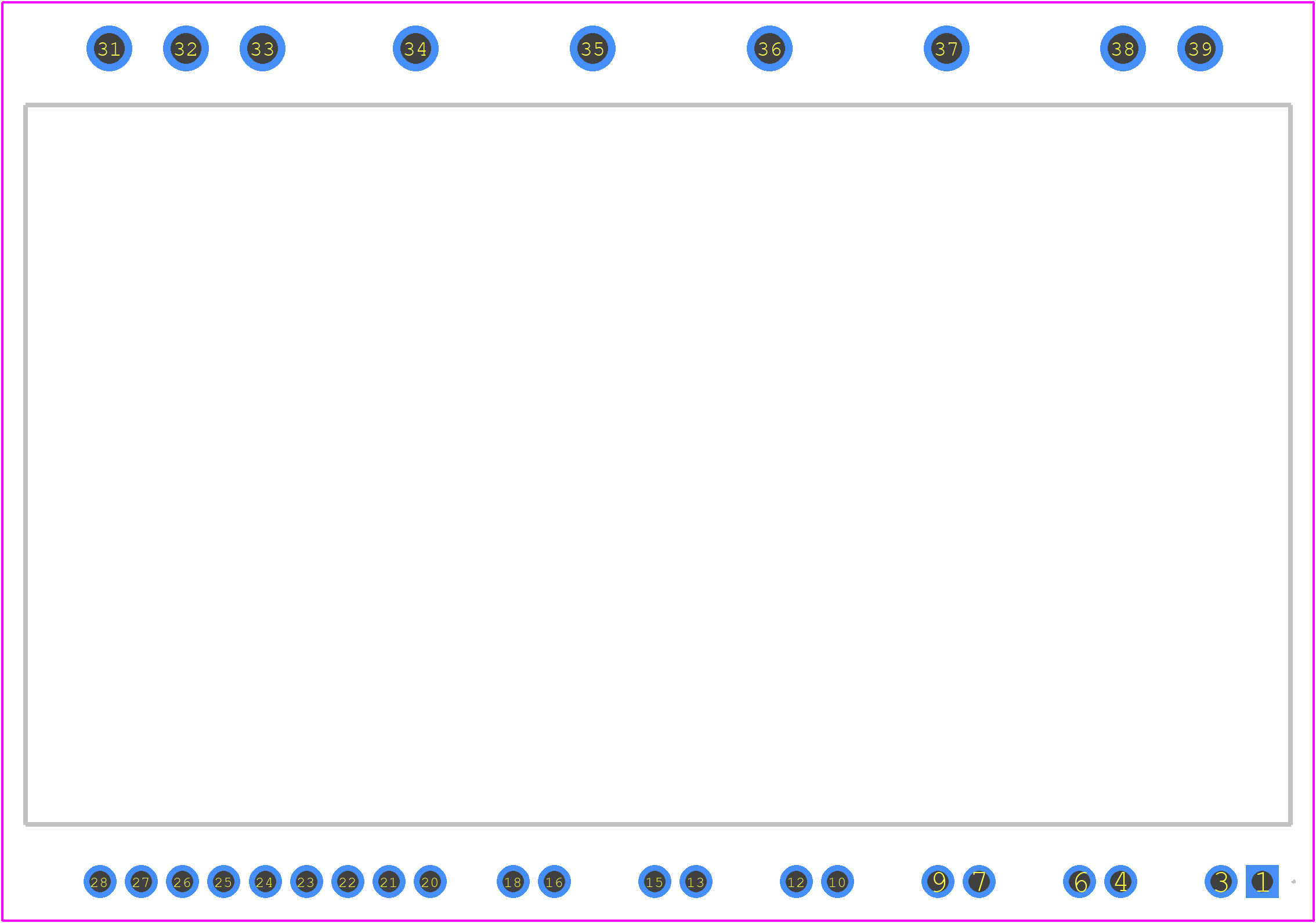

NFAM2512SCBUT - onsemi PCB footprint - Other - Other - DIP39, 54.50x31.00x5.60, 1.78P CASE MODGC ISSUE C
click to zoom
3D Models
NFAM2512SCBUT - onsemi - 3D model - Other - DIP39, 54.50x31.00x5.60, 1.78P CASE MODGC ISSUE C
click to zoom

NFAM2512SCBUT Details

  • Manufacturer Part Number:

    NFAM2512SCBUT

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    INTELLIGENT POWER MODULE(IPM)

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NFAM2512SCBUT Overview

Use the download button to access the NFAM2512SCBUT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFAM2, or try a keyword search, such as Motion Control Electronics
