NFAM3512L7B - onsemi

Description: UL Certification: E209204; 1200V 35A 3-Phase FS7 IGBT Inverter, Including Control ICs for Gate Drive and Protections; Low-Loss, Short-Circuit Rated IGBTs (FS7); Built-in Under-voltage Protection (UVP); Built-In Bootstrap Diodes/Resistors; Single-Grounded Power Supply; This is a Pb−Free Device

Download NFAM3512L7B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

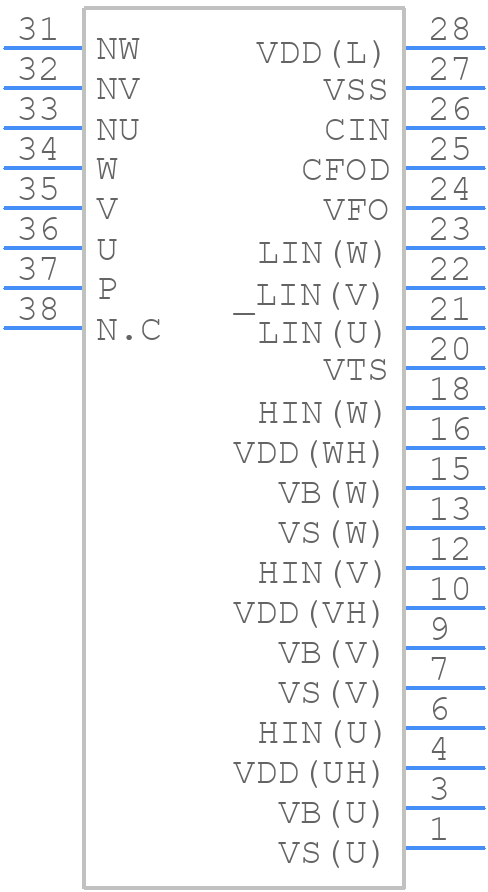

NFAM3512L7B - onsemi - PCB symbol
click to zoom
PCB Footprints

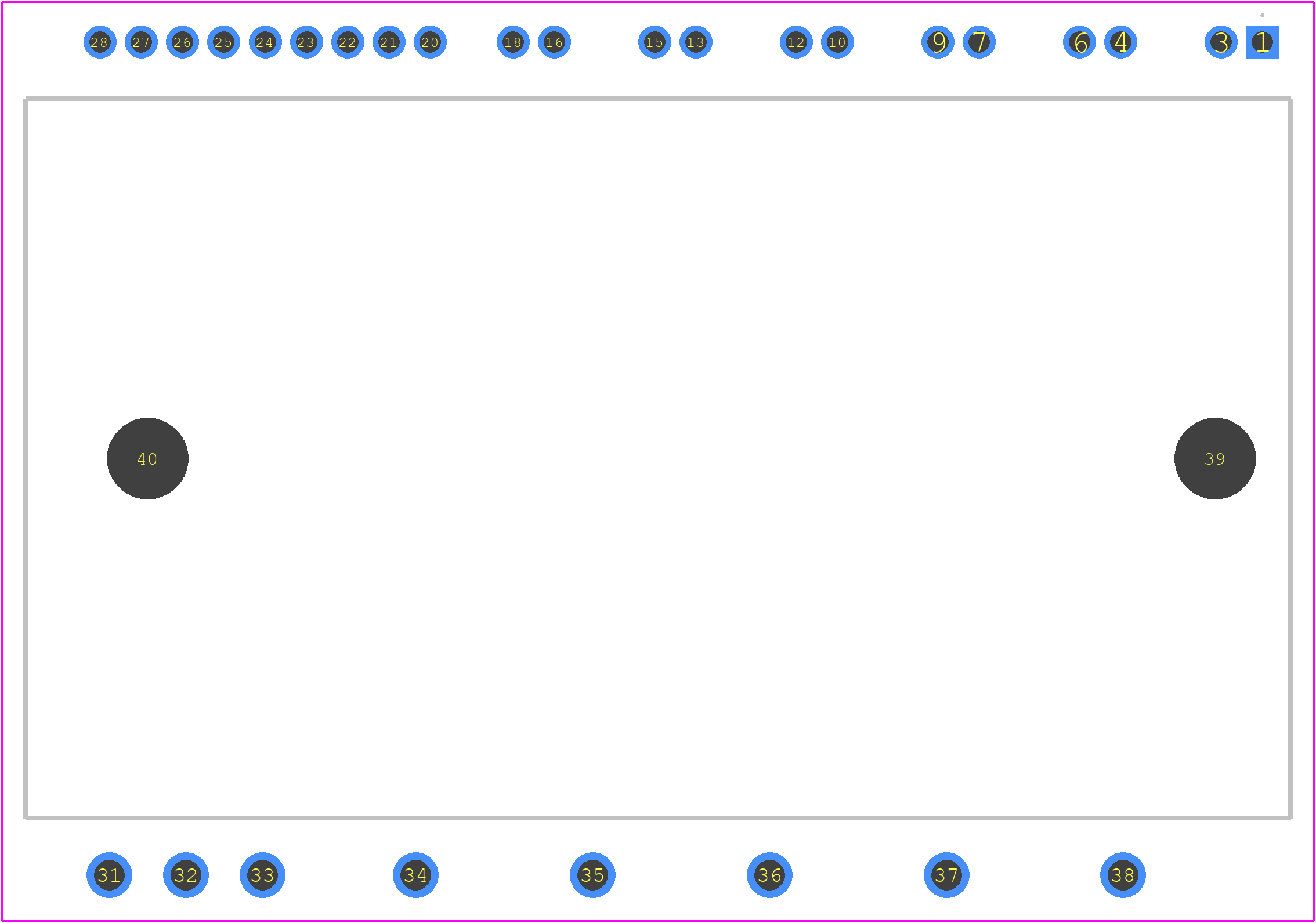

NFAM3512L7B - onsemi PCB footprint - Other - Other - DIP39, 54.50x31.00x5.60, 1.78P EP−2 CASE MODGX ISSUE A
click to zoom
3D Models
NFAM3512L7B - onsemi - 3D model - Other - DIP39, 54.50x31.00x5.60, 1.78P EP−2 CASE MODGX ISSUE A
click to zoom

NFAM3512L7B Details

  • Manufacturer Part Number:

    NFAM3512L7B

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP39, 54.50x31.00x5.60, 1.78P EP−2

  • Manufacturer Package Code:

    MODGX

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    INTELLIGENT POWER MODULE(IPM)
