NFAM3812SCBUT - onsemi

Description: Intelligent Power Module (IPM) Inverter, 1200 V, 50 A

Download NFAM3812SCBUT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

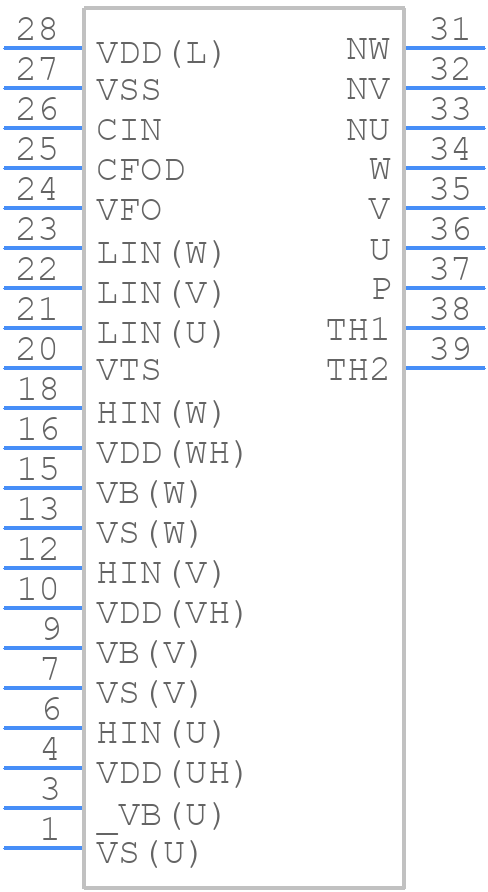

NFAM3812SCBUT - onsemi - PCB symbol
click to zoom
PCB Footprints

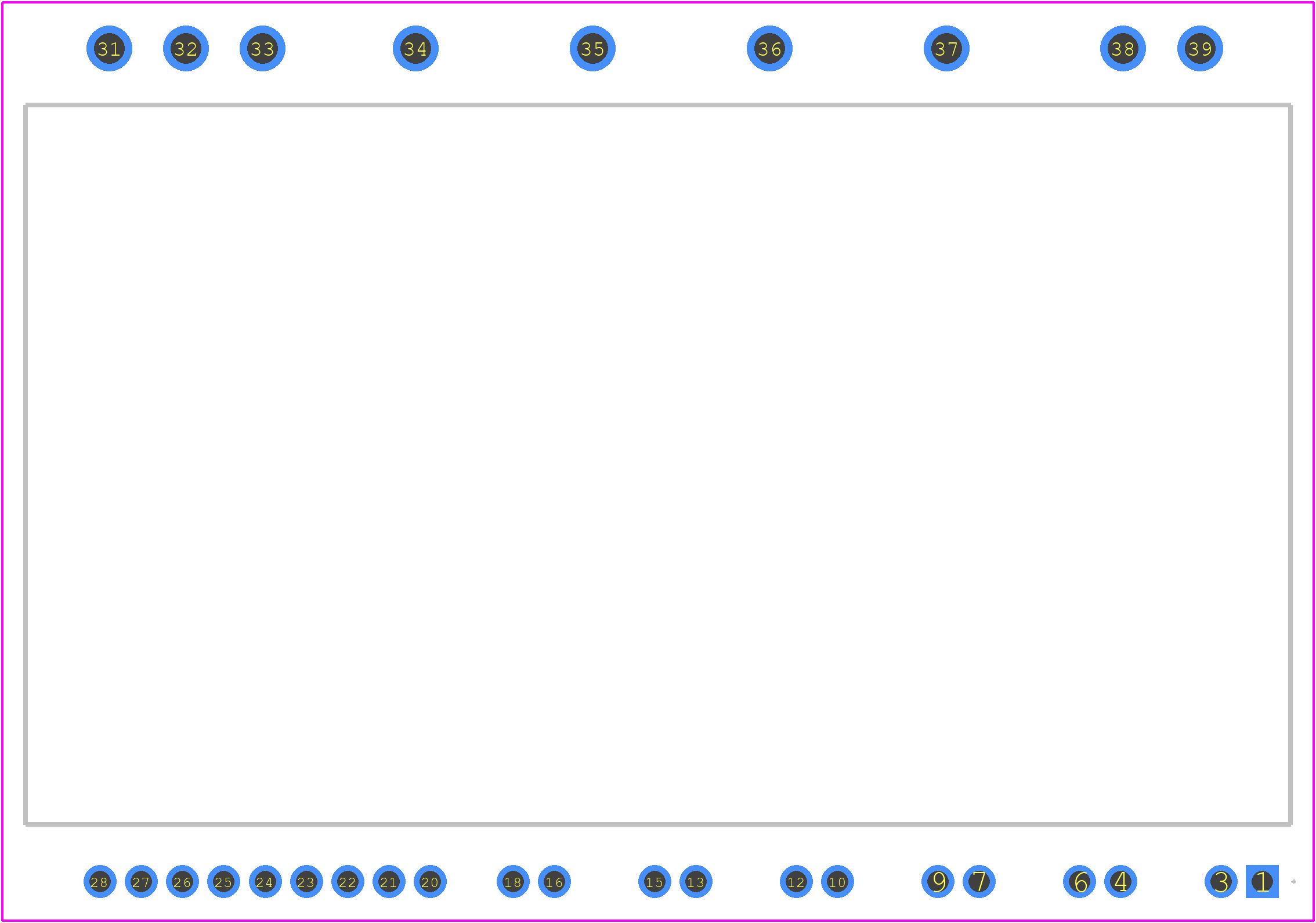

NFAM3812SCBUT - onsemi PCB footprint - Other - Other - DIP39, 54.50x31.00x5.60, 1.78P CASE MODGC ISSUE B_2025
click to zoom
3D Models
NFAM3812SCBUT - onsemi - 3D model - Other - DIP39, 54.50x31.00x5.60, 1.78P CASE MODGC ISSUE B_2025
click to zoom

NFAM3812SCBUT Details

  • Manufacturer Part Number:

    NFAM3812SCBUT

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    INTELLIGENT POWER MODULE(IPM)

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NFAM3812SCBUT Overview

Use the download button to access the NFAM3812SCBUT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFAM3, or try a keyword search, such as Motion Control Electronics
