NFAM5065L4BBA - onsemi

Description: 650 V - 50 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection; Low-Loss, Short-Circuit Rated IGBTs (FS4); Very Low Thermal Resistance Using; Built-In Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout; Single-Grounded Power Supply; Isolation Rating: 2500 Vrms / 1 min.

Download NFAM5065L4BBA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

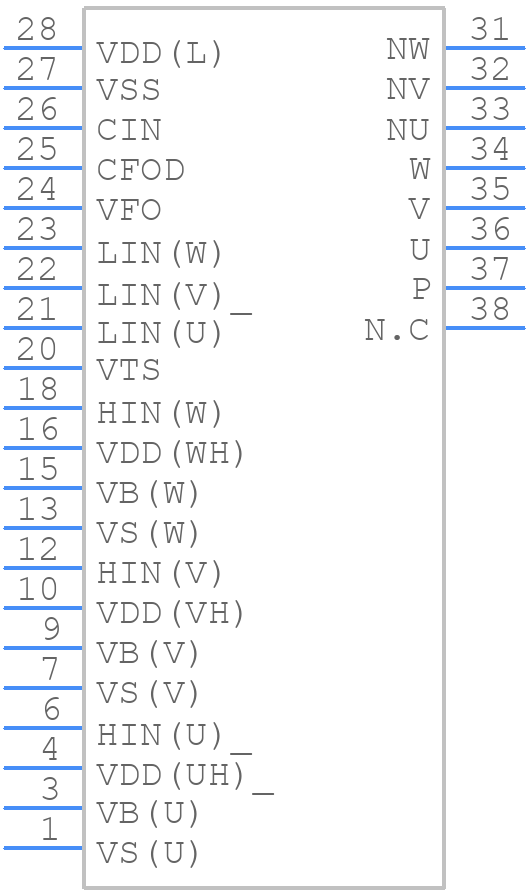

NFAM5065L4BBA - onsemi - PCB symbol
click to zoom
PCB Footprints

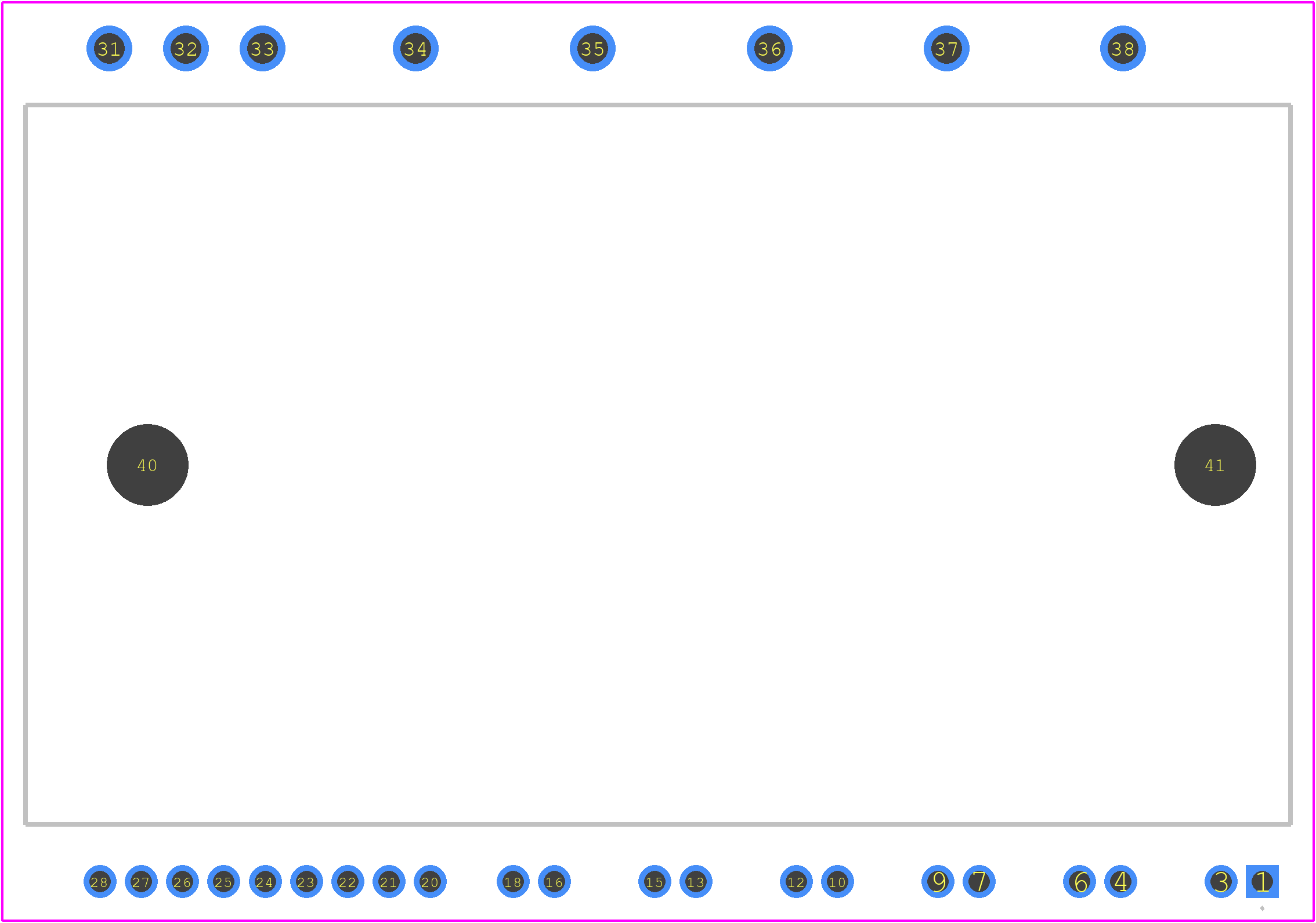

NFAM5065L4BBA - onsemi PCB footprint - Other - Other - DIP39, 54.50x31.00x5.60, 1.78P EP−2
click to zoom
3D Models
NFAM5065L4BBA - onsemi - 3D model - Other - DIP39, 54.50x31.00x5.60, 1.78P EP−2
click to zoom

NFAM5065L4BBA Details

  • Manufacturer Part Number:

    NFAM5065L4BBA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    INTELLIGENT POWER MODULE(IPM)

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NFAM5065L4BBA Overview

Use the download button to access the NFAM5065L4BBA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFAM5, or try a keyword search, such as Motion Control Electronics
