Description:650 V - 50 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection; Low-Loss, Short-Circuit Rated IGBTs (FS4); Very Low Thermal Resistance Using; Built-In Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout; Single-Grounded Power Supply; Isolation Rating: 2500 Vrms / 1 min.
A recommended PCB layout for optimal thermal performance would be to use a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and to place thermal vias under the device to dissipate heat effectively. Additionally, keeping the thermal path short and using a thermal pad on the device can help to reduce thermal resistance.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using a heat sink, thermal interface material, and ensuring good airflow around the device. It's also crucial to monitor the device's temperature and adjust the operating conditions accordingly.
Critical parameters to monitor during operation include the input voltage, output voltage, output current, and temperature. Monitoring these parameters can help prevent damage to the device and ensure reliable operation. It's also recommended to implement overvoltage, undervoltage, and overcurrent protection to prevent damage from abnormal operating conditions.
To optimize the output filter design for minimal ripple and noise, consider using a combination of capacitors and inductors with low equivalent series resistance (ESR) and high quality factor (Q). Additionally, use a filter topology that suits the specific application, such as an LC filter or a pi-filter. It's also essential to consider the output voltage ripple and noise requirements of the downstream components.
The recommended soldering and assembly techniques for the NFAM5065L4BL include using a reflow soldering process with a peak temperature of 260°C, and ensuring that the device is handled and stored in a static-safe environment. It's also crucial to follow the recommended land pattern and soldering guidelines to prevent damage to the device during assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NFAM5065L4BL Overview

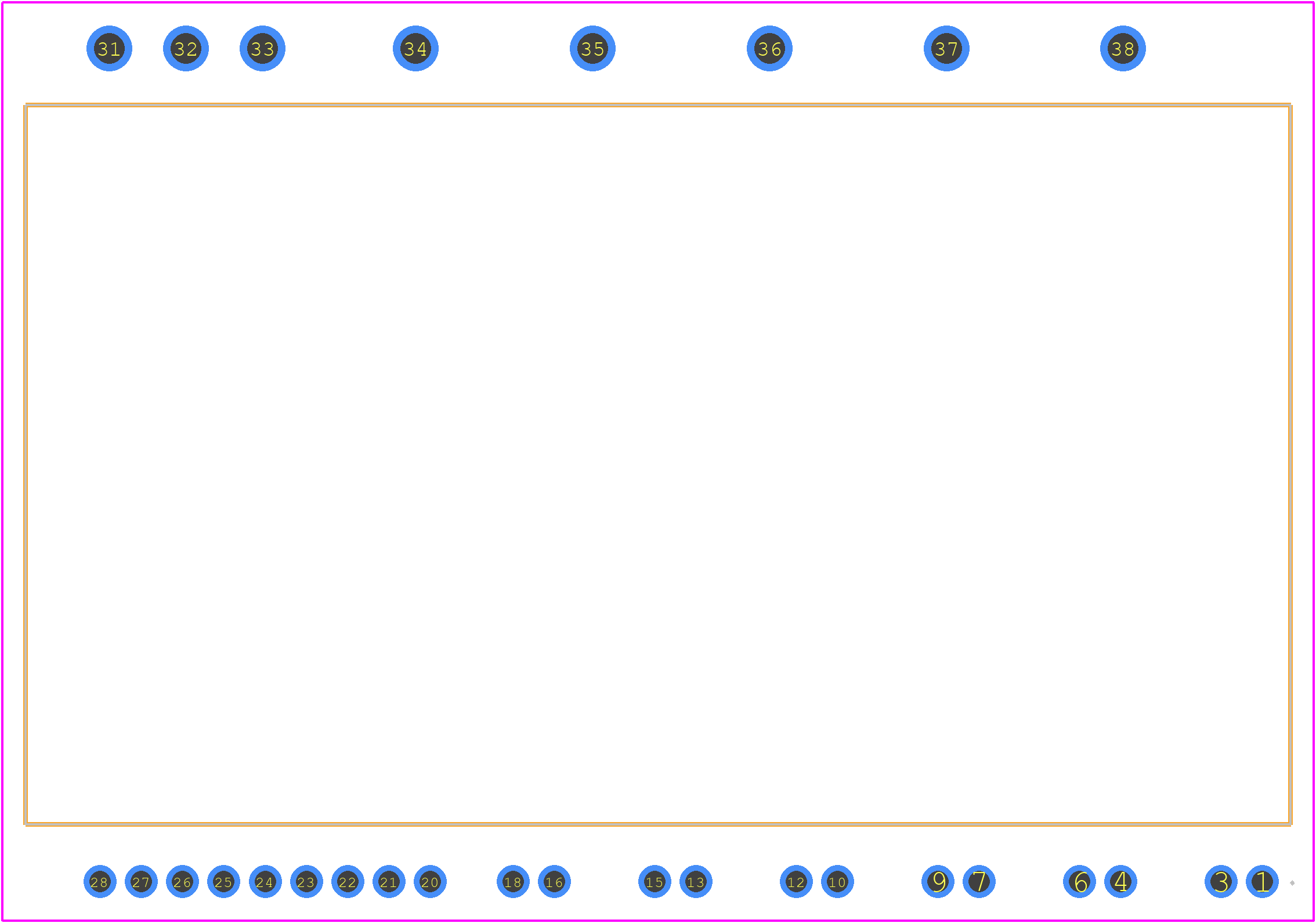

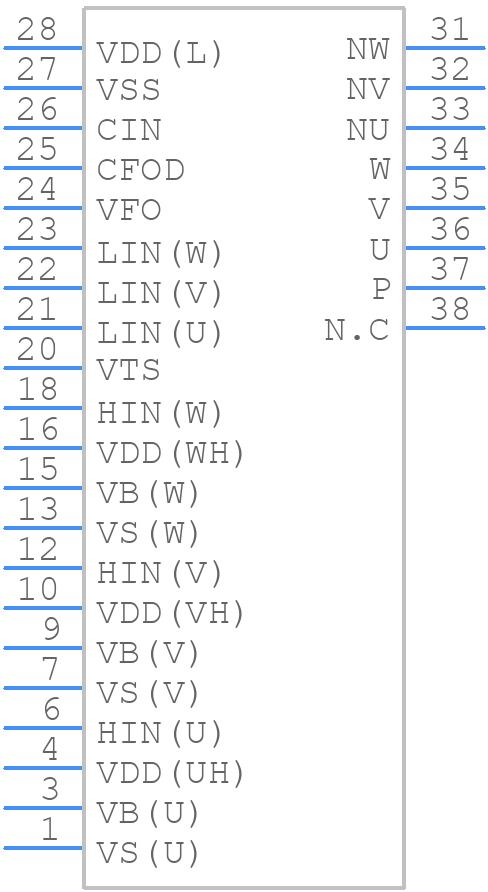

Use the download button to access the NFAM5065L4BL schematic symbol, PCB footprint, and 3D model.
