A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. The datasheet provides a recommended land pattern, but a more detailed layout guide can be found in the onsemi application note AND9093/D.
To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, including proper heat sinking, thermal interface material selection, and airflow management. Additionally, consider using a thermocouple or thermistor to monitor the device temperature and implement thermal protection mechanisms.
The high current rating of the NFCS1060L3TT requires careful consideration of PCB trace widths, thickness, and spacing to prevent overheating and ensure reliable operation. A minimum of 2 oz copper thickness and 10 mil trace widths are recommended, with wider traces and heavier copper recommended for high-current paths.
The input and output capacitors should be selected based on the device's operating frequency, output current, and voltage rating. A minimum of 10uF input capacitance and 22uF output capacitance are recommended, with X7R or X5R dielectric capacitors suitable for most applications.
To minimize EMI, use a common-mode choke or ferrite bead in series with the input, and consider adding a shield around the device and PCB to contain radiated emissions. Additionally, ensure that the PCB layout and component placement minimize loop areas and reduce radiation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NFCS1060L3TT Overview

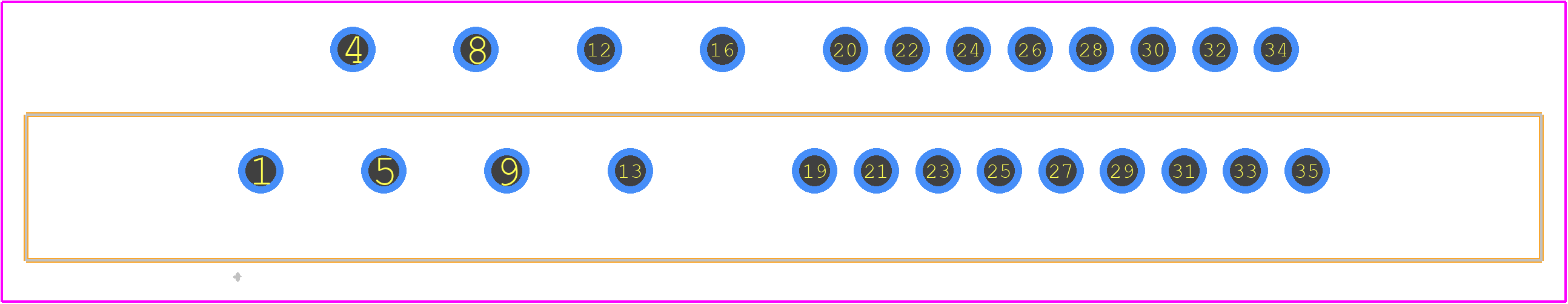

Use the download button to access the NFCS1060L3TT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFCS1,
or try a keyword search, such as Motion Control Electronics
