Description:Automotive IPM in 34 pin DIP package; WW 1st Automotive qualified grade HV module (AEC−Q100, 101 & AQG(LV)324); 1200 V , 35 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection; Low-Loss, Short-Circuit Rated IGBTs; Very Low Thermal Resistance using Al2O3 DBC Substrate; Built-In Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout; Separate Open-Emitter Pins from Low-Side IGBTs for Three-Phase Current Sensing; Built-In NTC Thermistor for Temperature Monitoring and Management; Adjustable Ov
A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan. Monitor junction temperature (TJ) and adjust the system design accordingly.
Monitor voltage, current, temperature, and power dissipation. Implement over-voltage, under-voltage, over-current, and over-temperature protection to prevent damage and ensure reliable operation.
Use a low-dropout linear regulator or a switching regulator with a high power conversion efficiency. Optimize the system design to minimize power losses, and consider using power-saving modes or dynamic voltage scaling.
Follow standard ESD handling procedures, including the use of ESD-protective packaging, wrist straps, and mats. Implement ESD protection circuits, such as TVS diodes or ESD arrays, in the system design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NFVA23512NP2T Overview

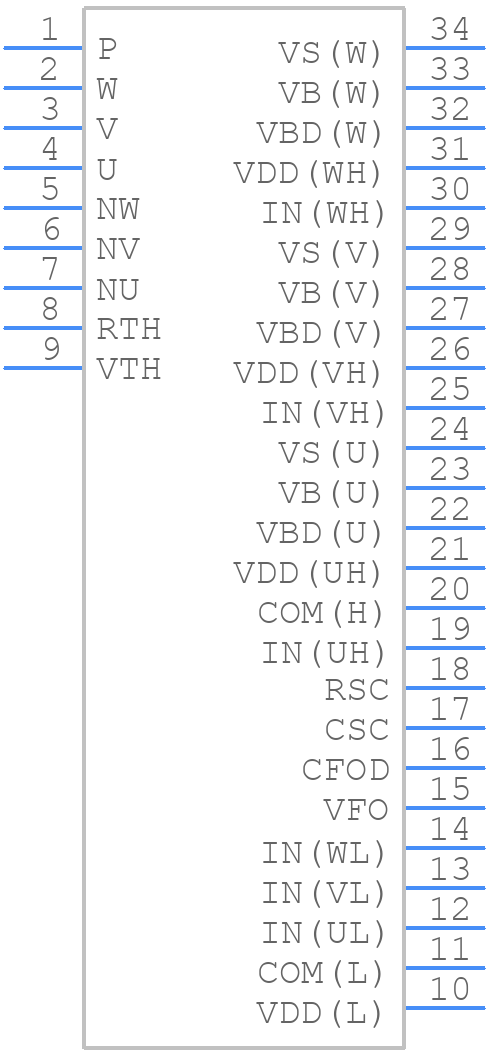

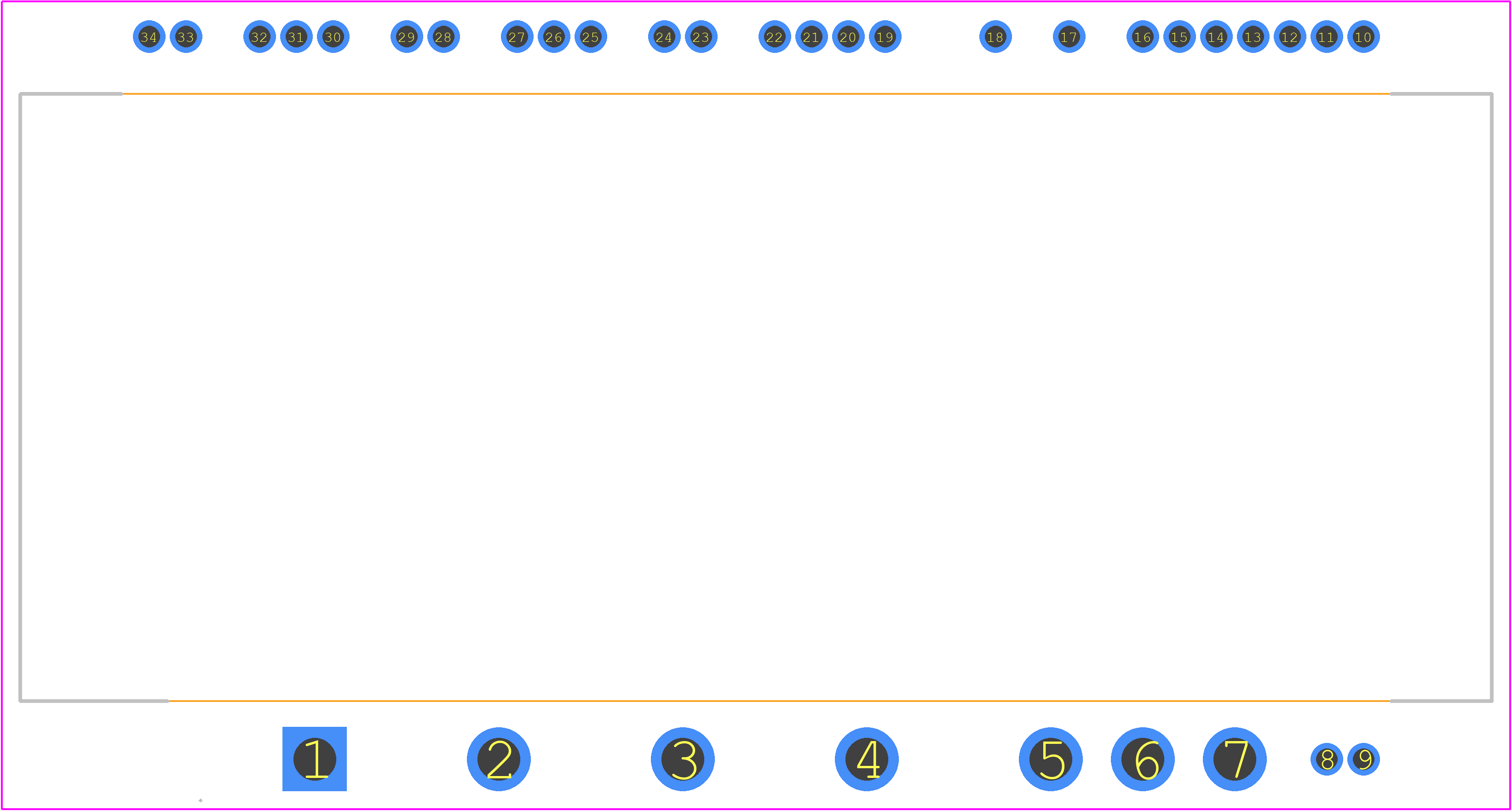

Use the download button to access the NFVA23512NP2T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFVA2,
or try a keyword search, such as Motion Control Electronics
