NFVA25012NP2T - onsemi

Description: Automotive IPM in 34 pin DIP package; WW 1st Automotive qualified grade HV module (AEC−Q100, 101 & AQG324; 1200 V , 50 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection; Low-Loss, Short-Circuit Rated IGBTs; Very Low Thermal Resistance using AlN DBC Substrate; Built-In Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout; Separate Open-Emitter Pins from Low-Side IGBTs for Three-Phase Current Sensing; Built-In NTC Thermistor for Temperature Monitoring and Management; Adjustable Over-Curr

Download NFVA25012NP2T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

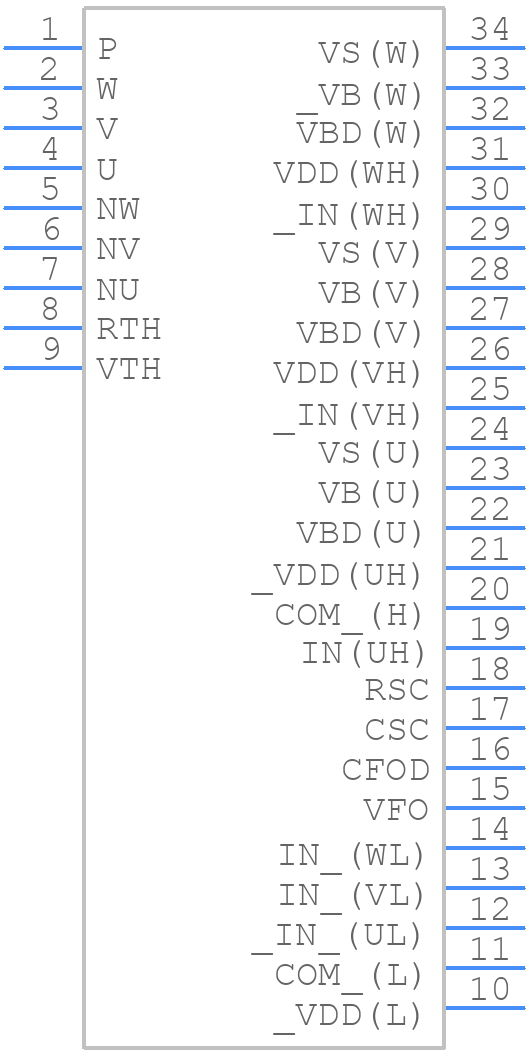

NFVA25012NP2T - onsemi - PCB symbol
click to zoom
PCB Footprints

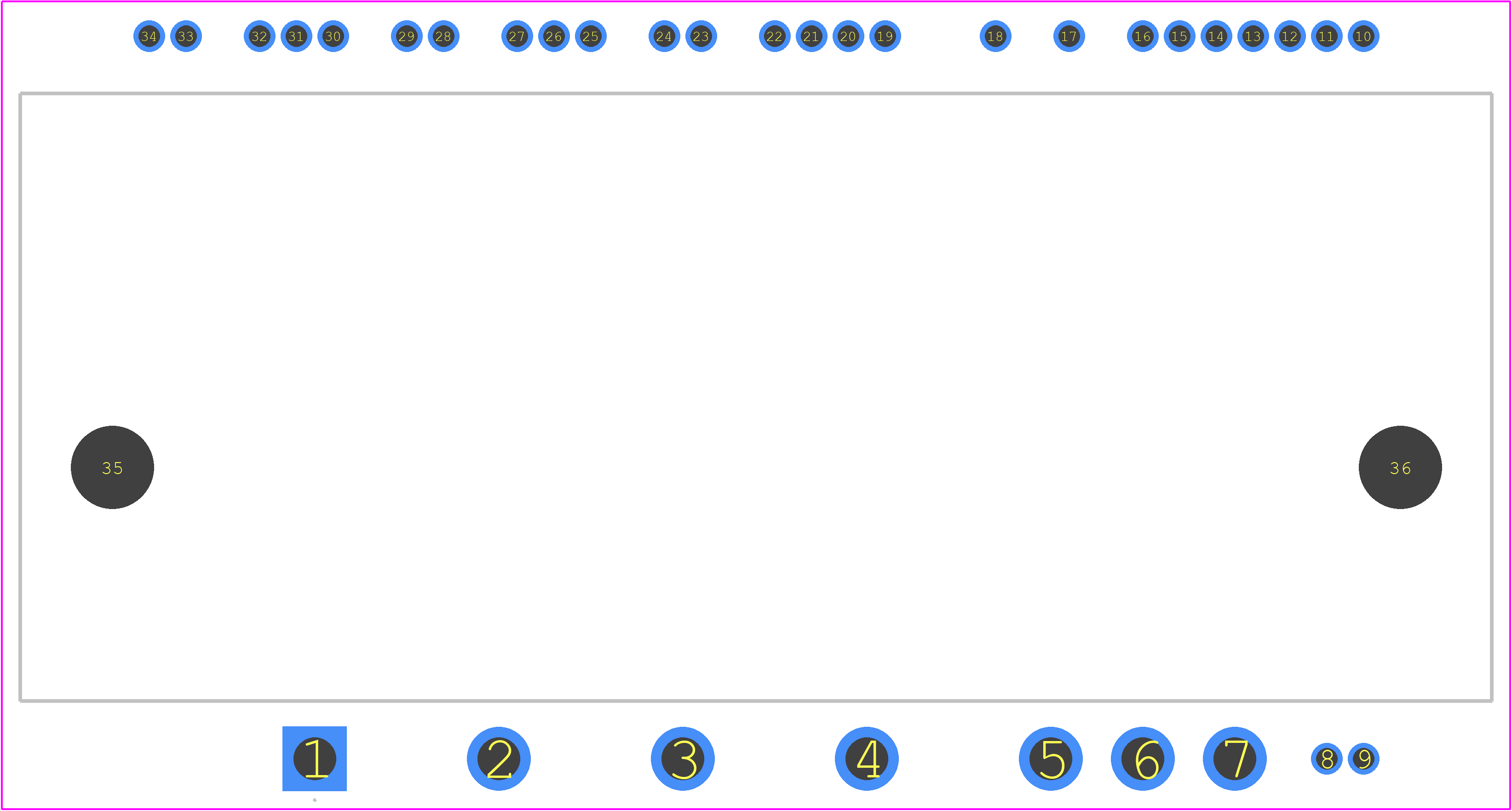

NFVA25012NP2T - onsemi PCB footprint - Other - Other - DIP34 80x33, AUTOMOTIVE MODULE CASE MODGL ISSUE O
click to zoom
3D Models
NFVA25012NP2T - onsemi - 3D model - Other - DIP34 80x33, AUTOMOTIVE MODULE CASE MODGL ISSUE O
click to zoom

NFVA25012NP2T Details

  • Manufacturer Part Number:

    NFVA25012NP2T

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP34 80x33, AUTOMOTIVE MODULE

  • Manufacturer Package Code:

    MODGL

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Date Of Intro:

    2020-01-02

  • Manufacturer:

    onsemi

  • YTEOL:

    9.4

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDIP-T34

  • JESD-609 Code:

    e3

  • Length:

    80 mm

  • Number of Functions:

    1

  • Number of Terminals:

    34

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    MODULE,34LEAD,1.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    8.1 mm

  • Supply Voltage-Max (Vsup):

    800 V

  • Supply Voltage-Min (Vsup):

    300 V

  • Supply Voltage-Nom (Vsup):

    600 V

  • Surface Mount:

    NO

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2 mm

  • Terminal Position:

    DUAL

  • Width:

    33 mm
