A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device and to connect it to a thermal plane or a heat sink.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and use a thermal interface material (TIM) with a high thermal conductivity. Additionally, consider using a device with a higher temperature rating or implementing thermal monitoring and shutdown mechanisms.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
To handle ESD protection for the NFVA34065L32, it's recommended to follow proper handling and storage procedures, use ESD-protective packaging, and implement ESD protection circuits or devices in the system design. Additionally, consider using a device with built-in ESD protection or adding external ESD protection components.
The recommended soldering and assembly techniques for the NFVA34065L32 involve using a soldering iron with a temperature range of 250°C to 260°C, a soldering time of 3-5 seconds, and a peak temperature of 240°C. It's also essential to follow the recommended land pattern and soldering guidelines to ensure reliable connections.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NFVA34065L32 Overview

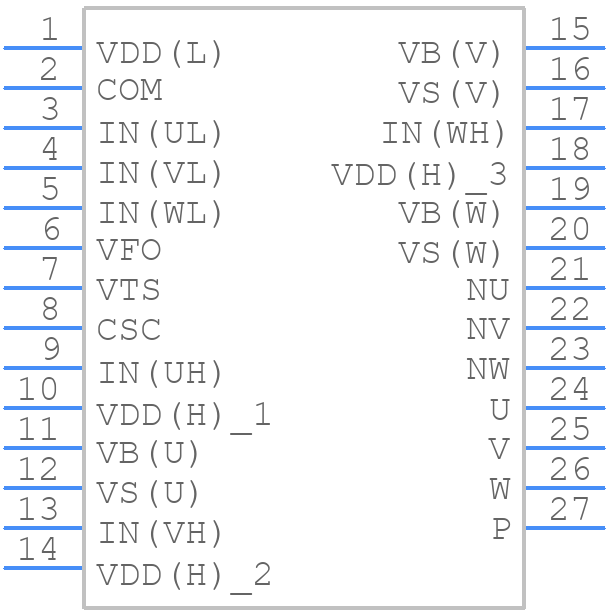

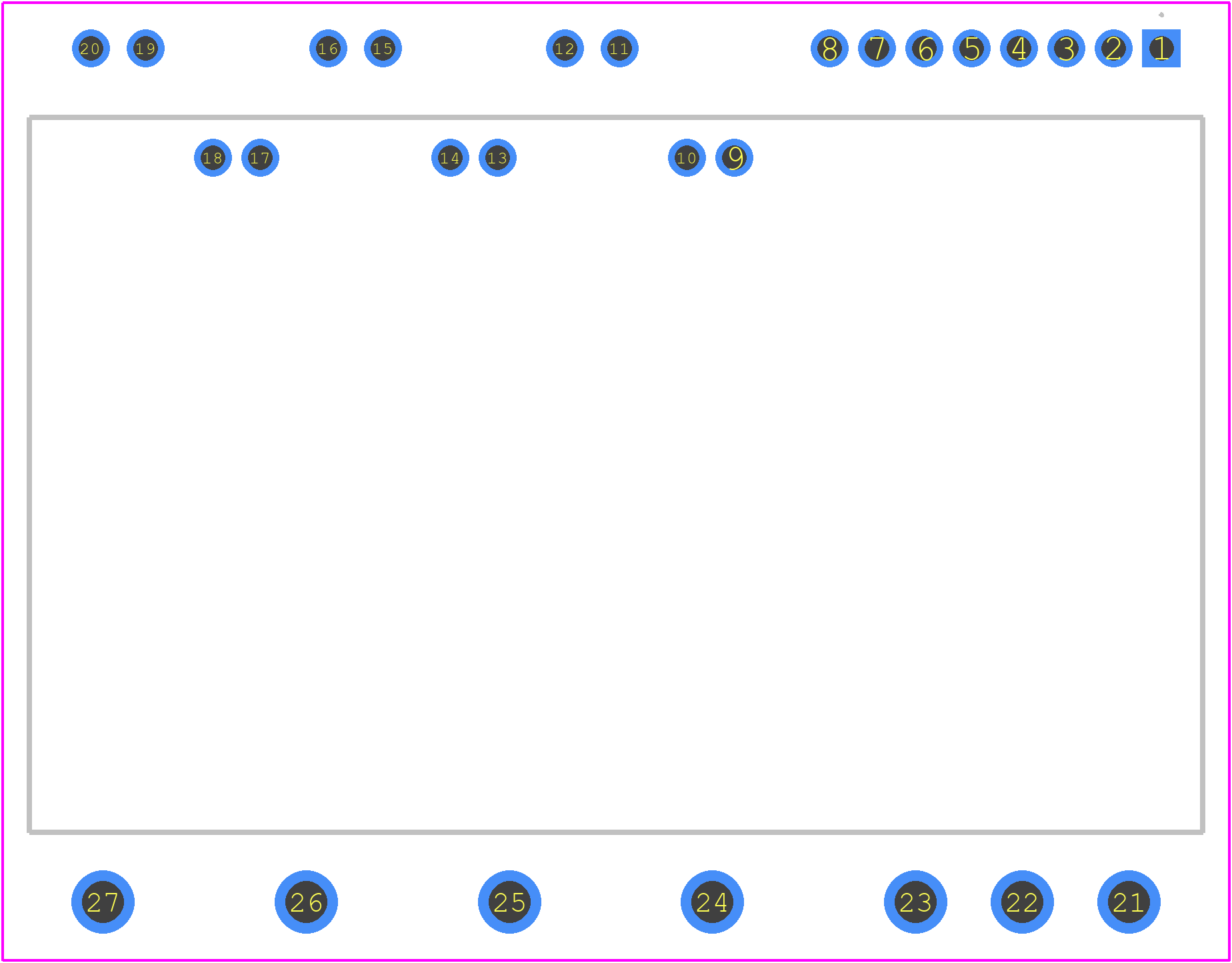

Use the download button to access the NFVA34065L32 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFVA3,
or try a keyword search, such as Motion Control Electronics
