NFVA35065L42 - onsemi

Description: 650V / 50A 3−Phase IGBT Inverter with Integral Gate Drivers and Protections; Automotive qualified grade HV module (AEC−Q100, 101 & AQG324); 175°C guaranteed Short−Circuit Rated FS4 Trench IGBTs with fast switching; Outstanding Thermal Resistance using Al2O3 DBC Substrate; Automotive SPM in 27 pin DIP package; Separated Open−Emitter Pins from Low−Side IGBTs for Three−Phase Current Sensing; Single−Grounded Power Supply; LVIC Temperature−Sensing Built−In for Temperature Monitoring; Isolation Rating: 2500 Vrms/

Download NFVA35065L42 Model

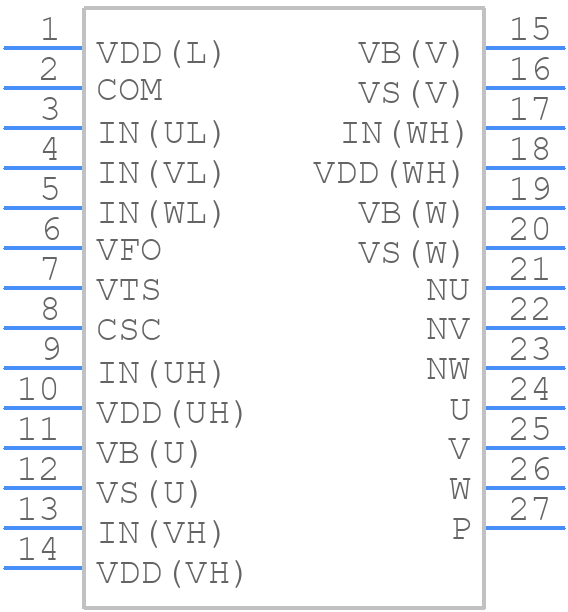

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

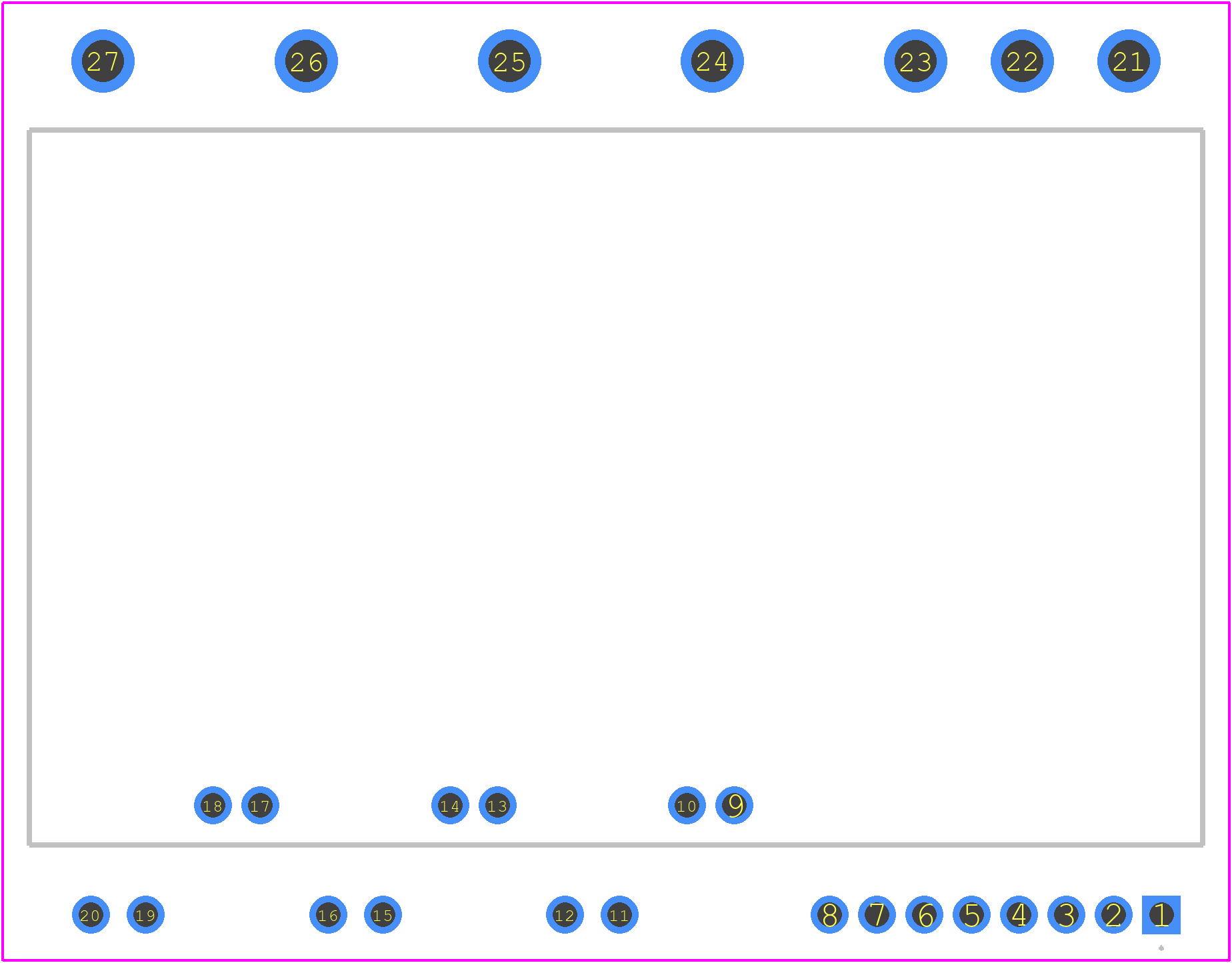

PCB Footprints
NFVA35065L42 - onsemi PCB footprint - Other - Other - 27LD MODULE PDD STD CASE MODCB ISSUE A_2024
click to zoom
3D Models
NFVA35065L42 - onsemi  - 3D model - Other - 27LD MODULE PDD STD CASE MODCB ISSUE A_2024
click to zoom

NFVA35065L42 Details

  • Manufacturer Part Number:

    NFVA35065L42

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP-027

  • Manufacturer Package Code:

    MODCB

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    9

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-609 Code:

    e3

  • Terminal Finish:

    Matte Tin (Sn) - annealed

NFVA35065L42 Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing thermal vias under the package, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the package and to connect it to a thermal plane or a heat sink.
  • To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, use a suitable heat sink, and ensure good thermal conductivity between the device and the heat sink. Additionally, consider using thermal interface materials and ensure that the PCB is designed to handle high temperatures.
  • Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
  • To handle ESD protection, it's recommended to follow proper handling and storage procedures, use ESD-protective packaging, and implement ESD protection circuits or devices in the system design. Additionally, consider using ESD-protected components and ensure that the PCB is designed with ESD protection in mind.
  • The recommended soldering conditions for the NFVA35065L42 involve using a soldering temperature between 240°C to 260°C, with a peak temperature not exceeding 260°C. The soldering time should be limited to 10 seconds or less, and the device should be handled with care to avoid mechanical stress.
