The recommended PCB layout for optimal thermal performance involves using a 2-layer or 4-layer board with a solid ground plane, placing thermal vias under the package, and using a thermal pad on the bottom of the package. A detailed layout guide can be found in the onsemi application note AND9176/D.
To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, use a suitable thermal interface material, and ensure proper airflow around the device. Additionally, the device should be operated within the specified junction temperature (Tj) range of -40°C to 150°C.
Key considerations for EMI and RFI mitigation include using a shielded enclosure, placing the device away from noise sources, using a common-mode choke, and implementing proper PCB layout techniques such as separating analog and digital grounds, and using guard rings around sensitive nodes.
The input capacitor values should be selected based on the specific application requirements, including the input voltage range, output voltage, and desired ripple voltage. A general guideline is to use a minimum capacitance of 10uF with a voltage rating of at least 1.5 times the maximum input voltage.
The recommended soldering conditions include a peak temperature of 260°C, a soldering time of 10 seconds, and a maximum of 3 reflow cycles. For rework, a hot air rework station with a maximum temperature of 220°C and a dwell time of 30 seconds is recommended.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NFVA36065L42 Overview

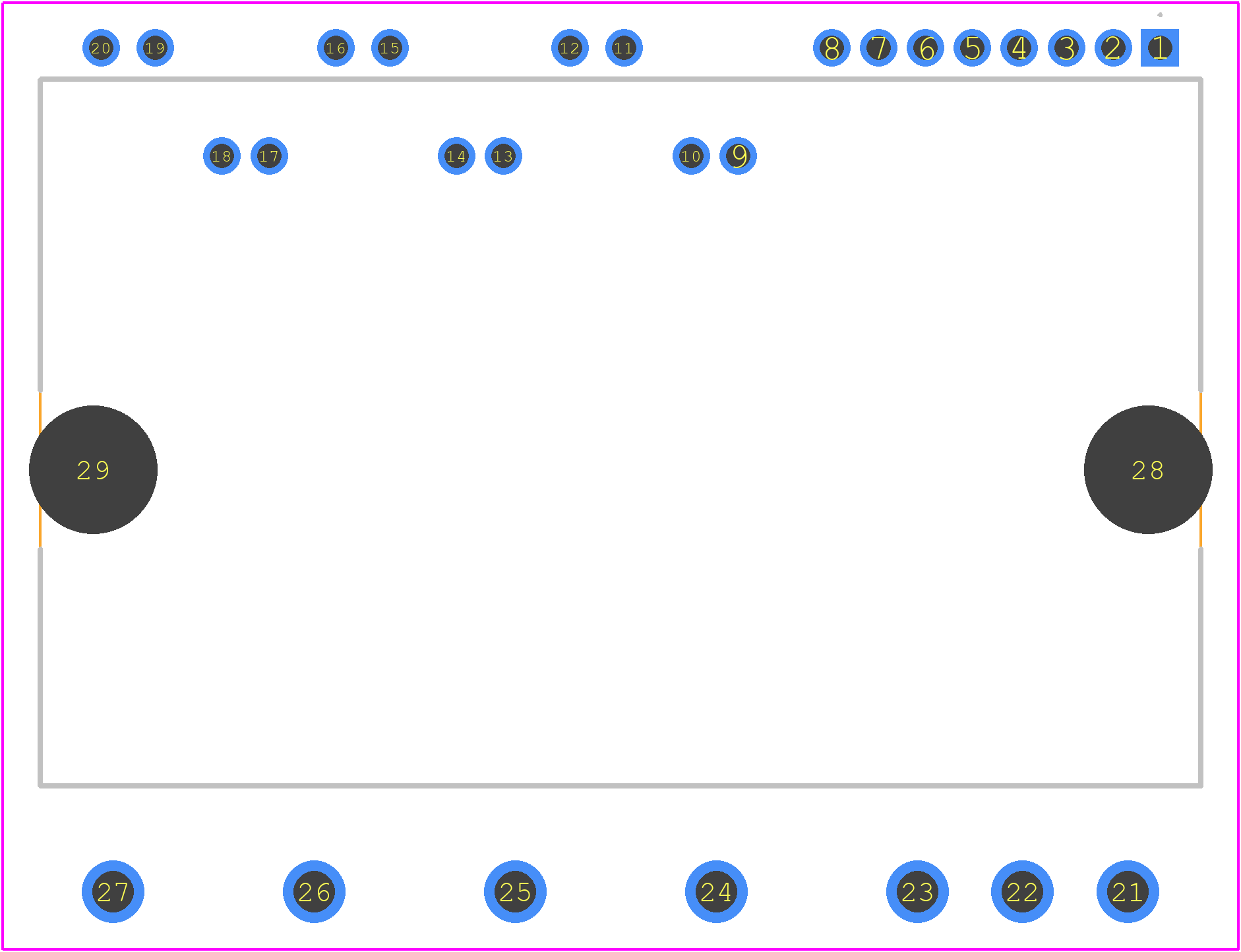

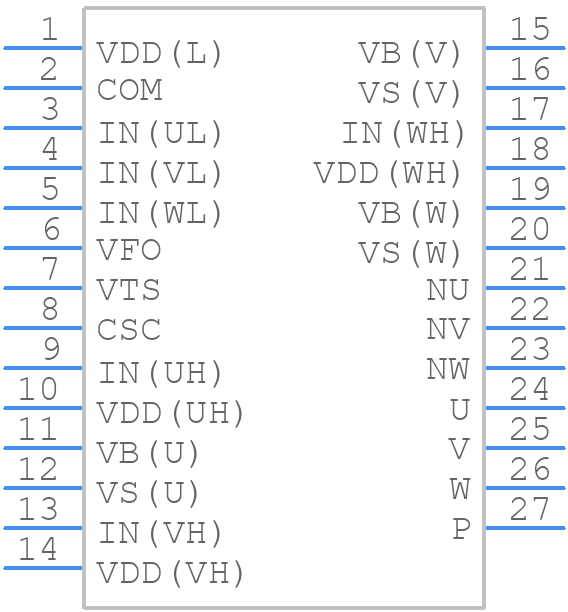

Use the download button to access the NFVA36065L42 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NFVA3,
or try a keyword search, such as Motion Control Electronics
