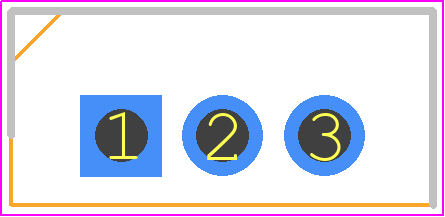

NGTG15N60S1EG footprint, schematic symbol and 3D model by onsemi

Symbol

PCB Footprints

3D Models

NGTG15N60S1EG Details

The maximum junction temperature for the NGTG15N60S1EG is 150°C, as specified in the datasheet. However, it's recommended to operate the device at a lower temperature to ensure reliability and longevity.
To ensure proper cooling, it's essential to provide a good thermal path from the device to a heat sink or a heat spreader. Use a thermal interface material (TIM) to fill any gaps between the device and the heat sink, and ensure the heat sink is properly mounted and secured.
The recommended gate drive voltage for the NGTG15N60S1EG is between 10V and 15V. However, the optimal gate drive voltage may vary depending on the specific application and switching frequency. Consult the datasheet and application notes for more information.
Yes, the NGTG15N60S1EG is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q101, which ensures the device can withstand the harsh conditions found in automotive and industrial environments.
To protect the NGTG15N60S1EG from ESD, handle the device by the body or use an anti-static wrist strap or mat. Ensure the device is stored in an anti-static bag or tube, and avoid touching the device's pins or leads during handling.
