NH82580EB - Intel

NH82580EB Details

• Manufacturer Part Number:

  NH82580EB

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  BGA

• Package Description:

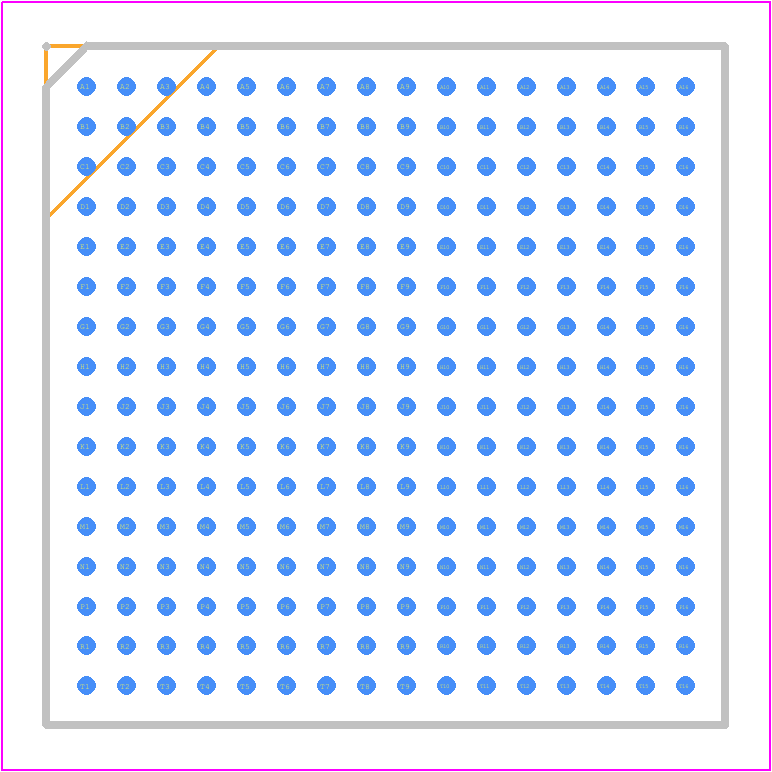

  17 X 17 MM, 1 MM PITCH, PLASTIC, BGA-256

• Pin Count:

  256

• ECCN Code:

  5A991

• HTS Code:

  8542.31.00.01

• Manufacturer:

  Intel Corporation

• YTEOL:

  0

• Additional Feature:

  ALSO REQUIRES 1.8V SUPPLY

• Boundary Scan:

  YES

• Bus Compatibility:

  PCI

• Clock Frequency-Max:

  25 MHz

• Communication Protocol:

  MIL STD 1553A; MIL STD 1553B

• Data Encoding/Decoding Method:

  BIPH-LEVEL (MANCHESTER)

• Data Transfer Rate-Max:

  640 MBps

• JESD-30 Code:

  S-PBGA-B256

• Low Power Mode:

  YES

• Number of Serial I/Os:

  4

• Number of Terminals:

  256

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -10 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Supply Voltage-Max:

  1.08 V

• Supply Voltage-Min:

  0.93 V

• Supply Voltage-Nom:

  1 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Form:

  BALL

• Terminal Position:

  BOTTOM

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, LAN
