NHD-0420CW-AW3 - Newhaven Display

Description: OLED Displays & Accessories 4x20 White Slim Character OLED

Download NHD-0420CW-AW3 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this NHD-0420CW-AW3 model

Email notifications will be applied after download.

Send part feedback

Symbol

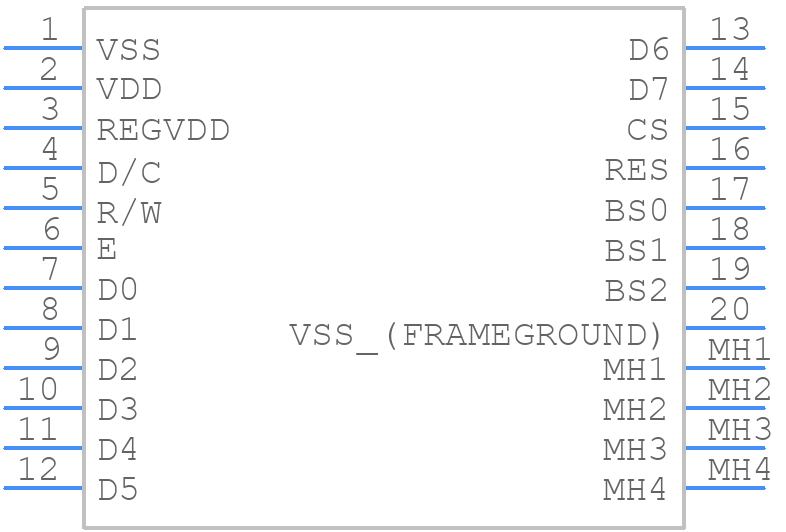

NHD-0420CW-AW3 - Newhaven Display - PCB symbol

PCB Footprints

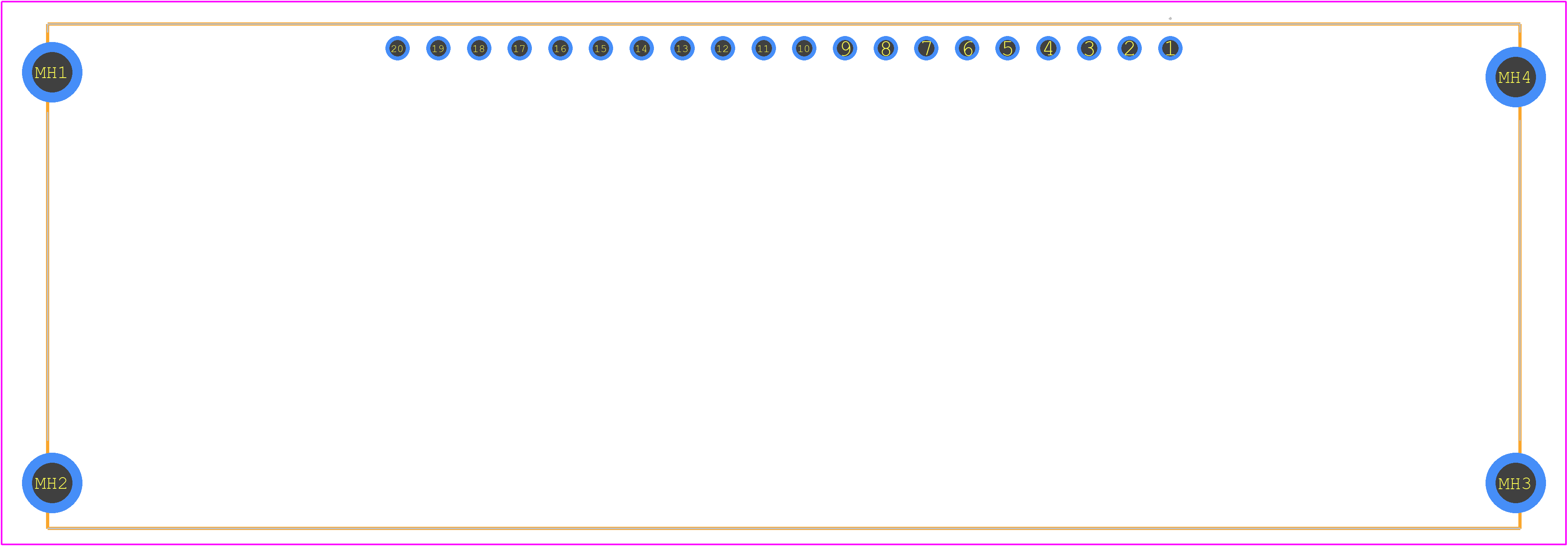

NHD-0420CW-AW3 - Newhaven Display PCB footprint - Other - Other - NHD-0420CW-AW3-1

3D Models

NHD-0420CW-AW3 - Newhaven Display - 3D model - Other - NHD-0420CW-AW3-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for NHD-0420CW-AW3
Part Number NHD-0420CW-AW3
Manufacturer Newhaven Display
Pin Count 24
Part Category Display
Package Category Other
Footprint Name Other - NHD-0420CW-AW3-1
Released Date Nov 20, 2018
Last Modified Date May 18, 2023 10:57 AM UTC
Pinout / Pin List Click Here (Member Only)

NHD-0420CW-AW3 Details

Manufacturer Part Number:
NHD-0420CW-AW3
Manufacturer:
Newhaven Display International

Trust Checks

Expert Contribution

System Verified

Community Approved

NHD-0420CW-AW3 Overview

Use the download button to access the NHD-0420CW-AW3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NHD-0, or try a keyword search, such as LCD Displays
