The recommended operating temperature range for the NHD-3.12-25664UCB2 is -20°C to 70°C.
The display can be initialized by sending a series of commands to the display controller, including the Function Set command, the Display On/Off command, and the Clear Display command. Refer to the datasheet for the specific command sequence.
The maximum current consumption of the NHD-3.12-25664UCB2 is approximately 25mA, depending on the display mode and backlight usage.
Yes, the NHD-3.12-25664UCB2 is compatible with 3.3V logic levels, but you may need to use level shifters or voltage dividers to ensure proper communication between the microcontroller and the display.
The display contrast can be adjusted by sending a Contrast Set command to the display controller. The contrast level can be set to one of 32 possible values.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NHD-3.12-25664UCB2 Overview

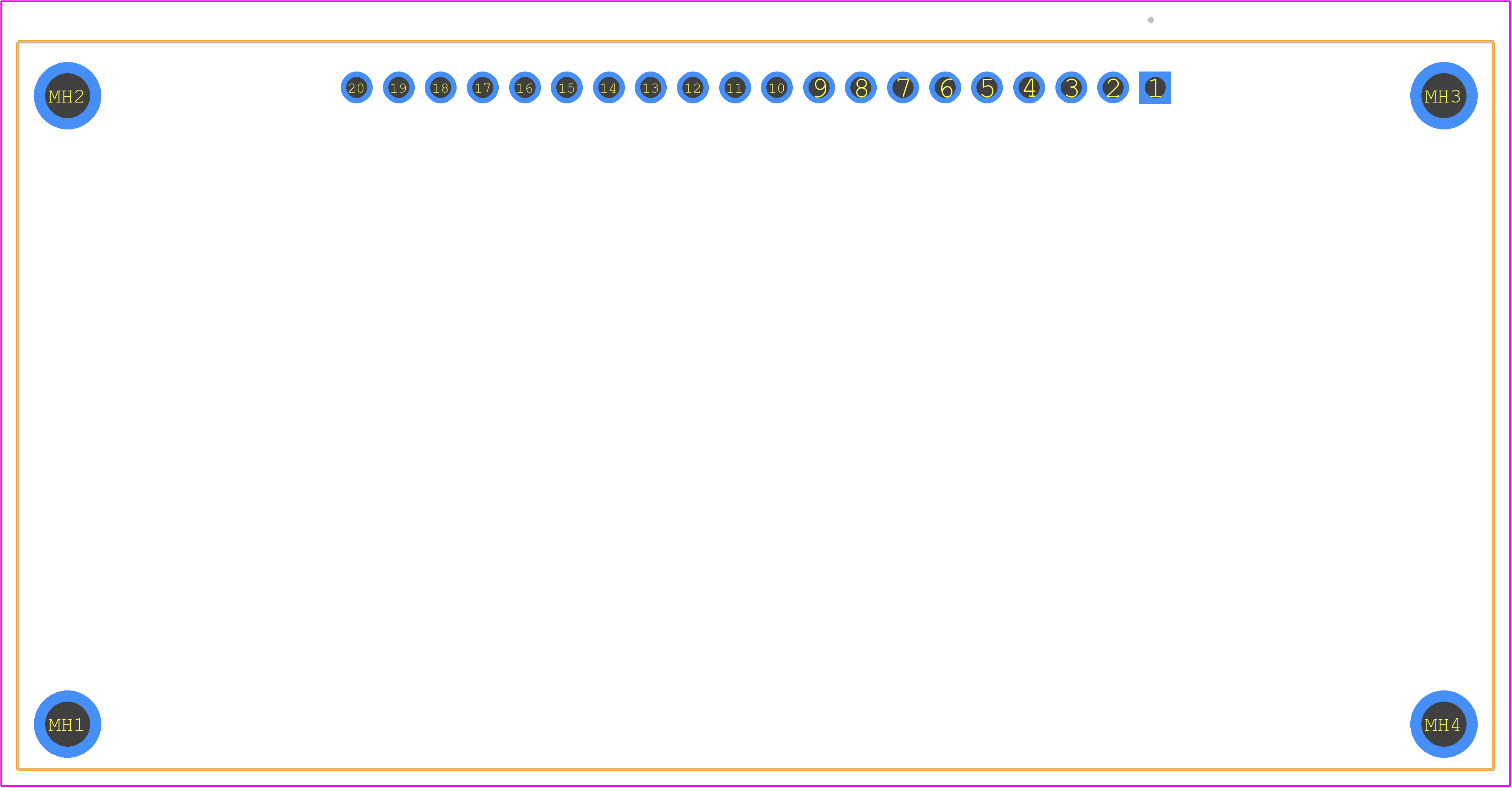

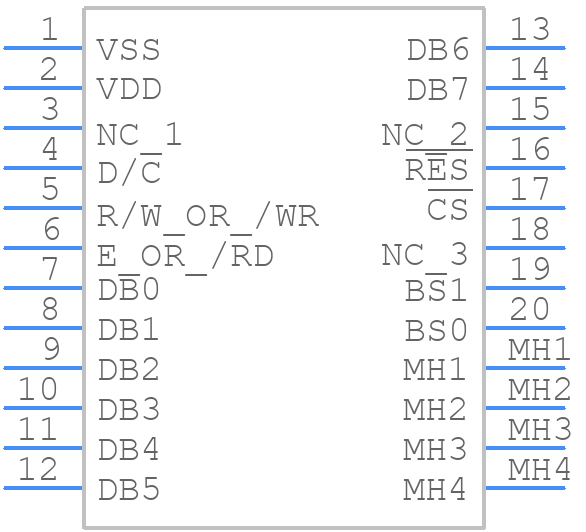

Use the download button to access the NHD-3.12-25664UCB2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NHD-3,
or try a keyword search, such as LED Displays
