NHD-3.12-25664UCY2 footprint, schematic symbol and 3D model by Newhaven Display

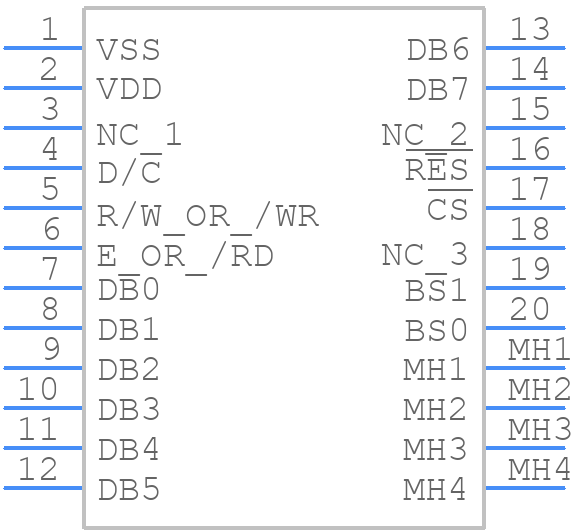

Symbol

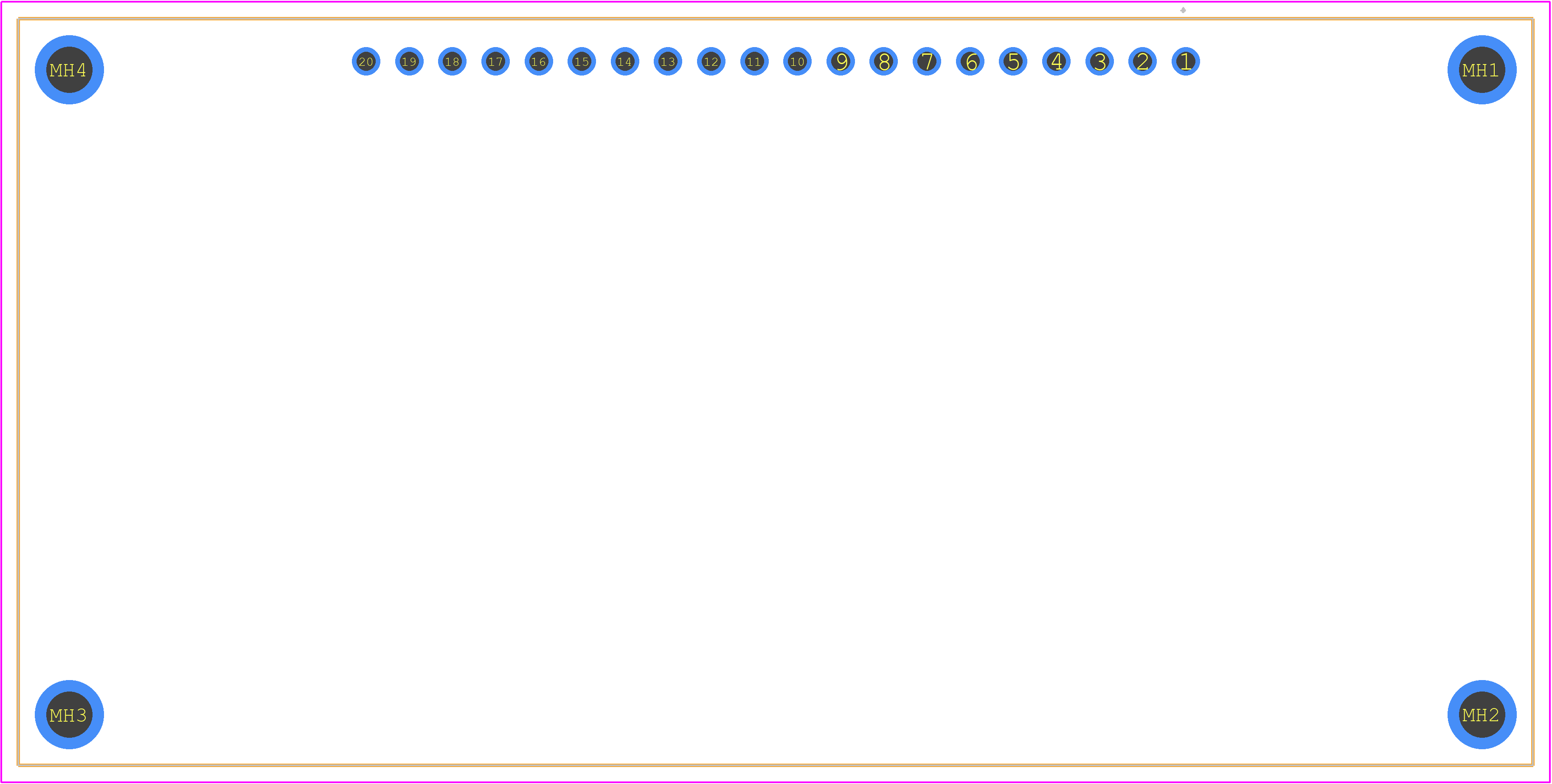

PCB Footprints

3D Models

NHD-3.12-25664UCY2 Details

The recommended operating temperature range for the NHD-3.12-25664UCY2 is -20°C to 70°C.
The display module requires a power-on reset sequence to initialize. Refer to the datasheet for the specific sequence and timing requirements.
The maximum current consumption of the NHD-3.12-25664UCY2 is approximately 150mA, depending on the backlight brightness and display content.
Yes, a level shifter can be used to interface with the display if the host controller's logic level is not compatible with the display's 3.3V logic level.
The backlight brightness can be adjusted by applying a PWM signal to the backlight control pin. The duty cycle of the PWM signal determines the brightness level.

Expert Contribution

System Verified

Community Approved

Use the download button to access the NHD-3.12-25664UCY2 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NHD-3, or try a keyword search, such as LED Displays
