NHD-5.5-25664UCG3 - Newhaven Display

Description: Non-Touch Graphic LCD Display Module Passive Green OLED - Passive Matrix 8-Bit, Parallel, SPI 5.5" (139.70mm) 256 x 64

Download NHD-5.5-25664UCG3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

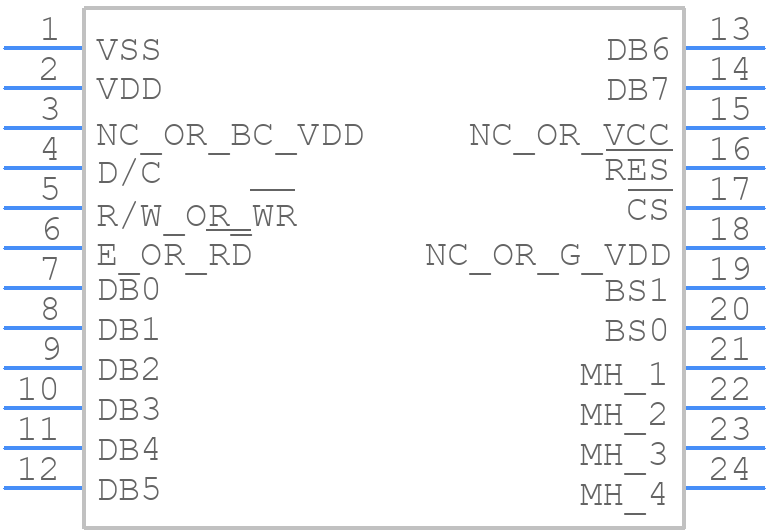

NHD-5.5-25664UCG3 - Newhaven Display - PCB symbol
click to zoom
PCB Footprints

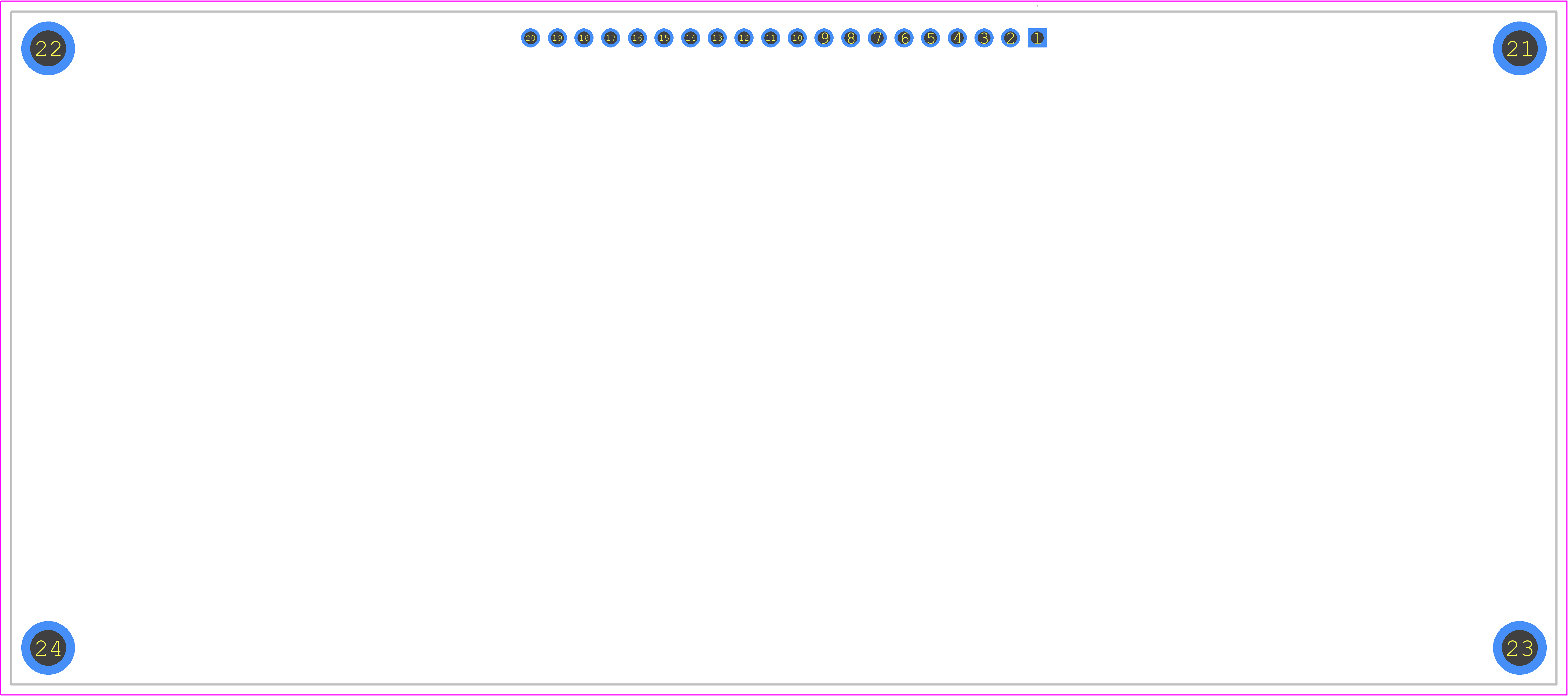

NHD-5.5-25664UCG3 - Newhaven Display PCB footprint - Other - Other - NHD-5.5-25664UCG3-1
click to zoom
3D Models
NHD-5.5-25664UCG3 - Newhaven Display - 3D model - Other - NHD-5.5-25664UCG3-1
click to zoom

NHD-5.5-25664UCG3 Details

  • Manufacturer Part Number:

    NHD-5.5-25664UCG3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Newhaven Display International

  • YTEOL:

    7

  • Optoelectronic Device Type:

    256 X 64 DOT MATRIX OLED DISPLAY

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NHD-5.5-25664UCG3 Overview

Use the download button to access the NHD-5.5-25664UCG3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NHD-5, or try a keyword search, such as LED Displays
