NHD-C0220BA-FSW-FTW-3V3 footprint, schematic symbol and 3D model by Newhaven Display

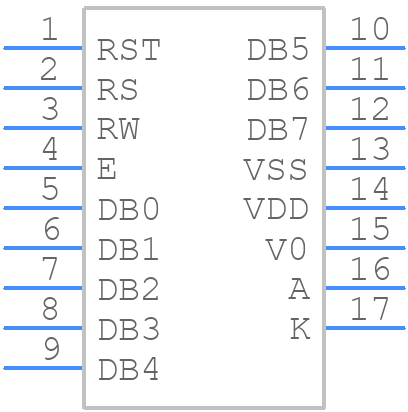

Symbol

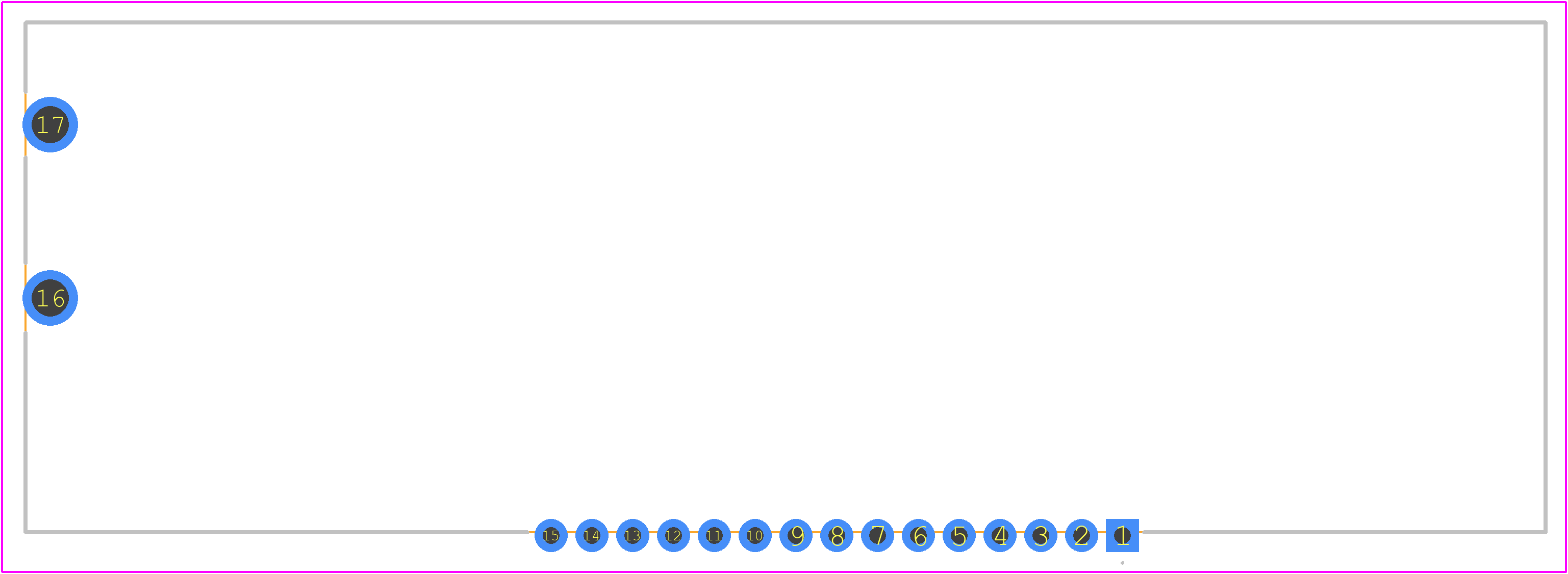

PCB Footprints

3D Models

NHD-C0220BA-FSW-FTW-3V3 Details

The recommended operating temperature range for the NHD-C0220BA-FSW-FTW-3V3 is -20°C to 70°C.
The display module requires a power-on reset (POR) sequence to initialize. This involves applying a voltage to the VDD pin, then waiting for a minimum of 10ms before sending commands to the display.
The maximum current consumption of the NHD-C0220BA-FSW-FTW-3V3 is approximately 25mA, depending on the display mode and backlight usage.
No, the NHD-C0220BA-FSW-FTW-3V3 is designed to operate at 3.3V, and using a 5V power supply may damage the module.
The backlight brightness can be adjusted by applying a PWM signal to the BLK pin. The duty cycle of the PWM signal determines the brightness level.
