A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 mm clearance around the device for airflow and heat dissipation.
Implement a thermal management strategy, such as heat sinks, thermal interfaces, or fans. Ensure the device is operated within the specified temperature range (-40°C to 150°C) and consider derating the device for high-temperature applications.
Use 100 nF to 1 μF ceramic capacitors, placed as close as possible to the device's power pins. Ensure the capacitors are rated for the operating voltage and have a low equivalent series resistance (ESR).
Implement ESD protection measures, such as TVS diodes or ESD arrays, on the PCB. Ensure the protection devices are rated for the operating voltage and have a response time faster than the device's internal ESD protection.
Use a pi-filter (R-C-R) or a common-mode choke on the input and output lines to reduce electromagnetic interference (EMI) and ensure electromagnetic compatibility (EMC).
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NHS3152/A1Z Overview

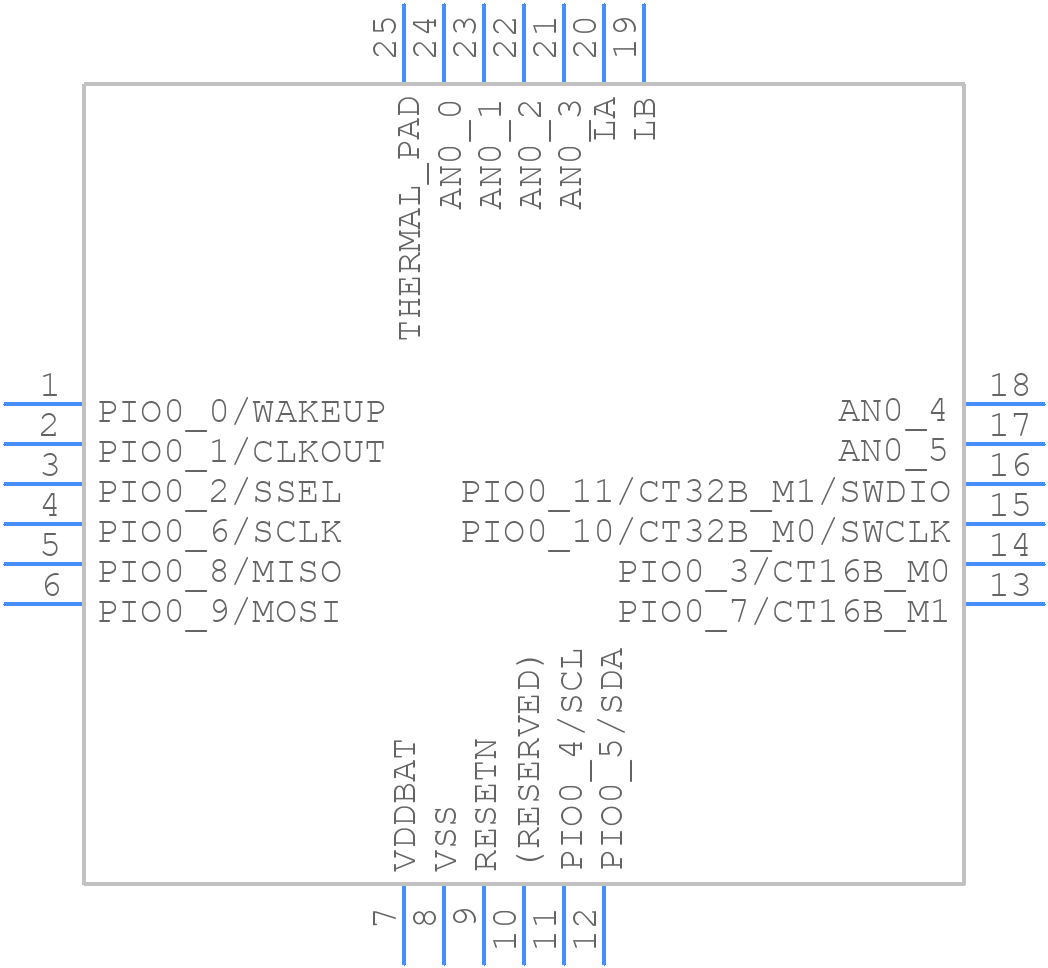

Use the download button to access the NHS3152/A1Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NHS31,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
