NID30S24-05 - Mean Well

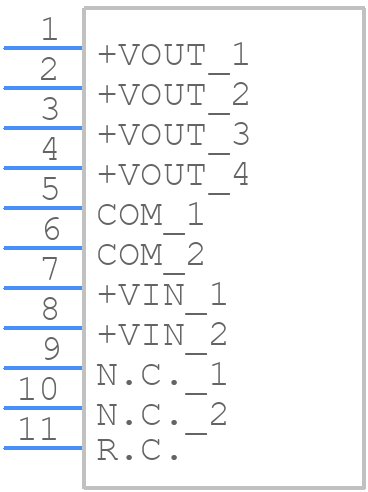

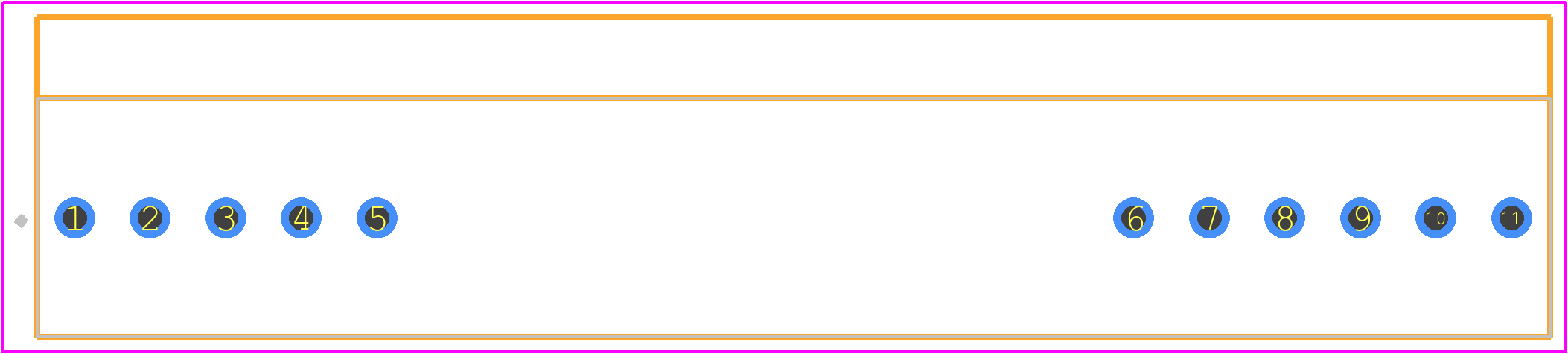

NID30S24-05 Details

• Manufacturer Part Number:

  NID30S24-05

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  SIP-11

• ECCN Code:

  EAR99

• Manufacturer:

  Mean Well

• YTEOL:

  0

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Efficiency (Main Output):

  91%

• Input Voltage-Max:

  53 V

• Input Voltage-Min:

  20 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-PSIP-P11

• Length:

  50.8 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  11

• Operating Temperature-Max:

  65 °C

• Operating Temperature-Min:

  -25 °C

• Output Current-Max:

  2.5 A

• Output Voltage-Max:

  5.1 V

• Output Voltage-Min:

  4.9 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SIP

• Package Equivalence Code:

  SIP11,.2(UNSPEC)

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  OVER LOAD, OVER TEMPERATURE, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.035 Vrms

• Seated Height-Max:

  10.7 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  12.5 W

• Trim/Adjustable Output:

  NO

• Width:

  13 mm
