NID35-15 - Mean Well

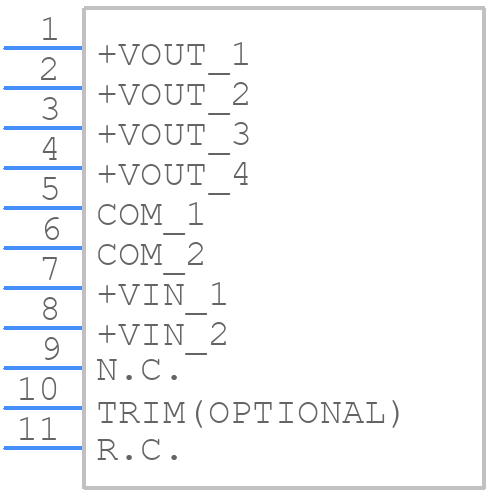

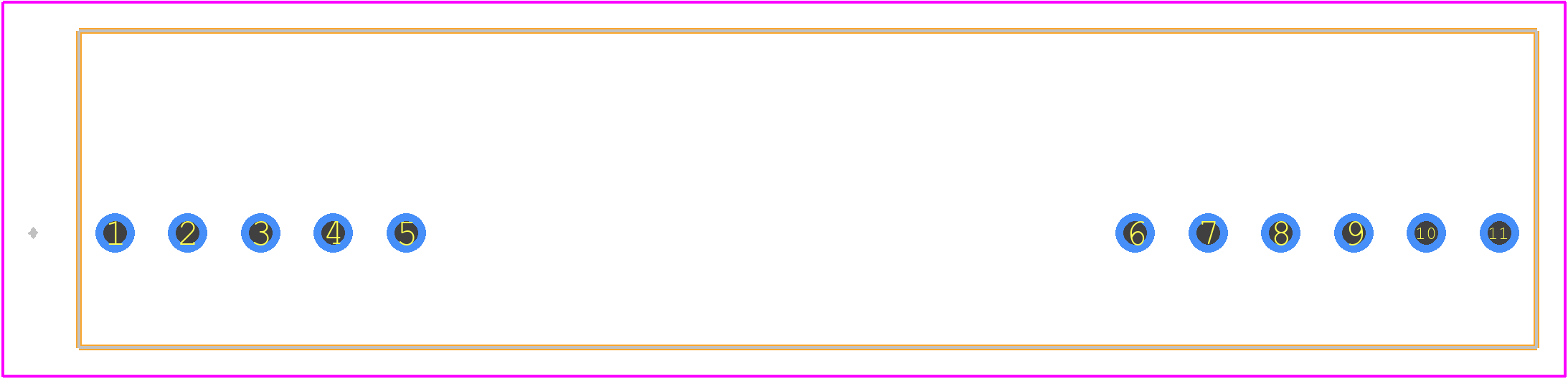

NID35-15 Details

• Manufacturer Part Number:

  NID35-15

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  PACKAGE-11

• ECCN Code:

  EAR99

• Date Of Intro:

  2020-10-15

• Manufacturer:

  Mean Well

• YTEOL:

  7

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  BS, EN

• Efficiency (Main Output):

  94%

• Input Voltage-Max:

  53 V

• Input Voltage-Min:

  20 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-XSMA-T11

• Length:

  50.8 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  0.2%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  11

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• Output Current-Max:

  2.4 A

• Output Voltage-Max:

  15.3 V

• Output Voltage-Min:

  14.7 V

• Output Voltage-Nom:

  15 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  SMA

• Package Equivalence Code:

  MODULE,11LEAD(UNSPEC)

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  OVER LOAD, OVER VOLTAGE, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.053025 Vrms

• Screening Level:

  EN 62368-1

• Seated Height-Max:

  12 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  36 W

• Trim/Adjustable Output:

  YES

• Width:

  13 mm
