NINA-B111-04B - u-blox

Description: Bluetooth Modules - 802.15.1 Stand-alone BLE Module with antenna pin, nRF52832, SMD

Download NINA-B111-04B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

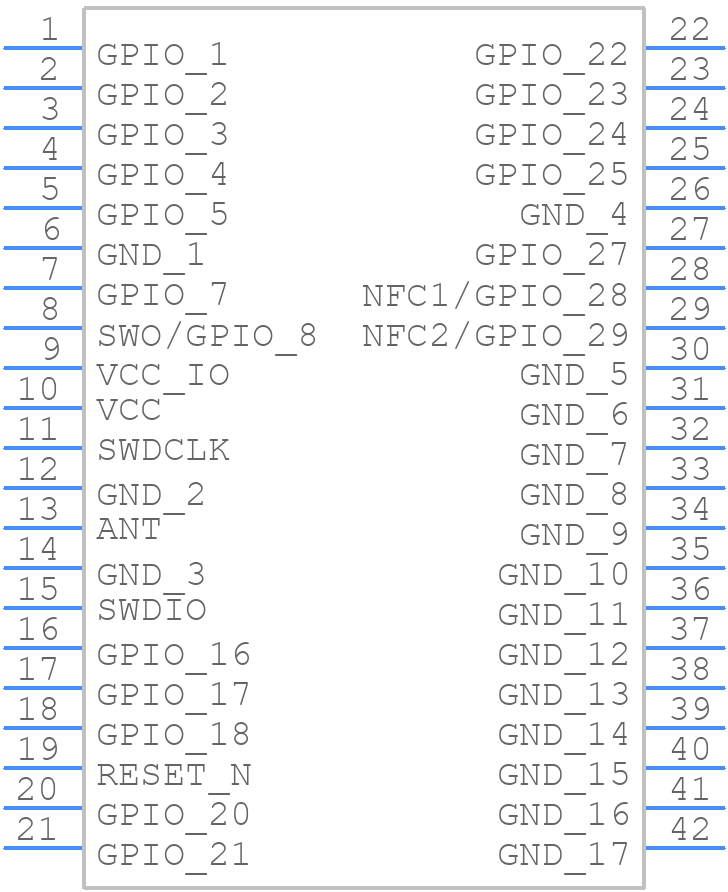

NINA-B111-04B - u-blox - PCB symbol
click to zoom
PCB Footprints

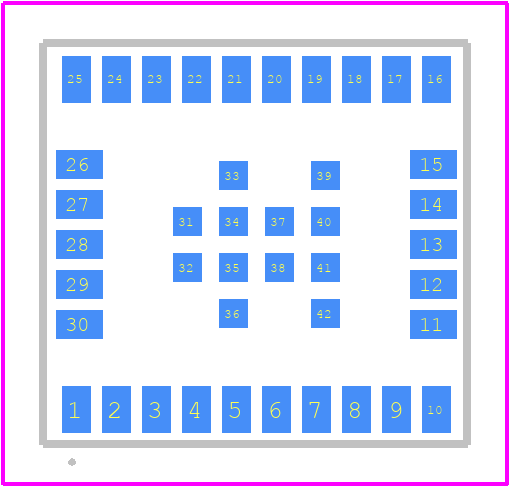

NINA-B111-04B - u-blox PCB footprint - Other - Other - NINA-B111-04B-4
click to zoom
3D Models
NINA-B111-04B - u-blox - 3D model - Other - NINA-B111-04B-4
click to zoom

NINA-B111-04B Details

  • Manufacturer Part Number:

    NINA-B111-04B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Date Of Intro:

    2019-03-05

  • Manufacturer:

    u-blox AG

  • Data Rate:

    2000 Mbps

  • JESD-30 Code:

    R-XXMA-N30

  • Length:

    10.6 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.6 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    10 mm

NINA-B111-04B Frequently Asked Questions (FAQs)

  • The recommended antenna design for the NINA-B111-04B is a 50-ohm, λ/4 monopole antenna with a ground plane. The antenna should be tuned for optimal performance at the desired frequency band.
  • To configure the NINA-B111-04B for low power consumption, use the AT command set to set the module to power-saving mode. Additionally, adjust the transmission power, data rate, and sleep mode to optimize power consumption for your specific application.
  • The NINA-B111-04B module is rated for operation in the temperature range of -40°C to +85°C. However, it's recommended to operate the module within the range of -20°C to +70°C for optimal performance and reliability.
  • To ensure reliable data transmission, use the AT command set to configure the module for the desired cellular network and data transmission protocol. Additionally, implement error correction and retransmission mechanisms in your application to handle potential data transmission errors.
  • The maximum current consumption during transmission for the NINA-B111-04B module is approximately 450 mA. However, this value may vary depending on the specific transmission mode, frequency band, and power class.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NINA-B111-04B Overview

Use the download button to access the NINA-B111-04B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NINA-, or try a keyword search, such as Other Telecom ICs

About u-blox

u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
