NINA-B312-01B - u-blox

Description: Bluetooth Modules - 802.15.1 nRF52840, metal antenna, u-connectXpress

Download NINA-B312-01B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NINA-B312-01B - u-blox - PCB symbol
click to zoom
PCB Footprints

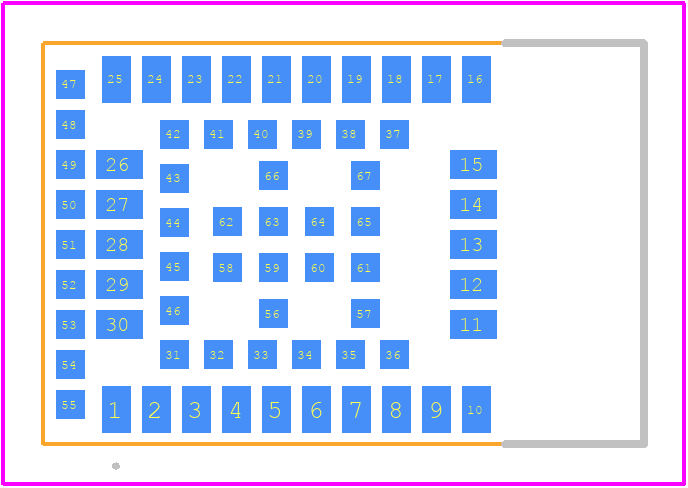

NINA-B312-01B - u-blox PCB footprint - Other - Other - NINA-B312-01B-1
click to zoom
3D Models
NINA-B312-01B - u-blox - 3D model - Other - NINA-B312-01B-1
click to zoom

NINA-B312-01B Details

  • Manufacturer Part Number:

    NINA-B312-01B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MODULE-55

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • YTEOL:

    0

  • JESD-30 Code:

    R-XXMA-N55

  • Length:

    15 mm

  • Number of Terminals:

    55

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Equivalence Code:

    MODULE,55LEAD(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    4.23 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    10 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

NINA-B312-01B Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NINA-B312-01B is -40°C to +85°C, as specified in the datasheet. However, it's recommended to operate the module within the range of -20°C to +70°C for optimal performance and reliability.
  • To configure the NINA-B312-01B for low power consumption, you can use the AT command set to adjust the power mode, transmission power, and sleep mode. Additionally, you can use the u-blox CellLocate technology to reduce power consumption during cellular operations. Refer to the u-blox documentation for more information on power-saving features.
  • The NINA-B312-01B supports a maximum data transfer rate of up to 300 kbps in GSM/GPRS mode and up to 10 Mbps in LTE Cat-M1 mode, depending on the network and configuration.
  • Yes, you can use the NINA-B312-01B with a non-u-blox antenna, but it's recommended to use an antenna that is specifically designed and certified for use with the NINA-B312-01B to ensure optimal performance and compliance with regulatory requirements.
  • To troubleshoot connectivity issues with the NINA-B312-01B, check the module's power supply, antenna connection, and SIM card configuration. Use the AT command set to verify the module's configuration and check for any error messages. You can also use u-blox's debugging tools and documentation to help identify and resolve connectivity issues.
