NINA-B416-01B footprint, schematic symbol and 3D model by u-blox

Symbol

click to zoom

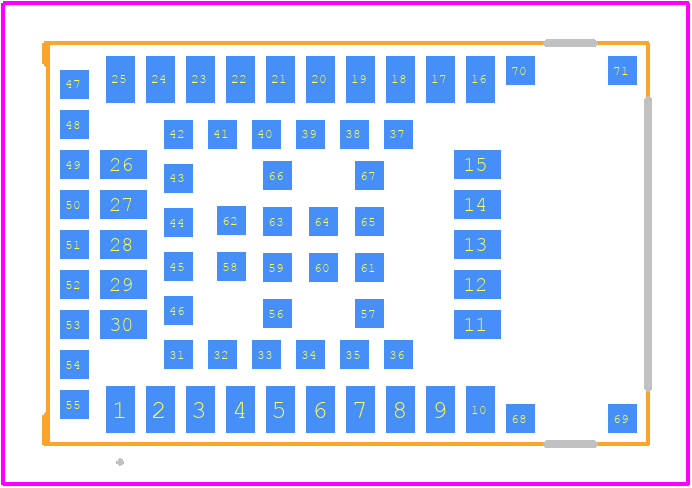

PCB Footprints

NINA-B416-01B - u-blox PCB footprint - Other - Other - 15 x 10 x 2.23mm

click to zoom

3D Models

NINA-B416-01B - u-blox - 3D model - Other - 15 x 10 x 2.23mm

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NINA-B416-01B
Part Number NINA-B416-01B
Manufacturer u-blox
Pin Count 71
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - 15 x 10 x 2.23mm
Released Date Sep 26, 2025
Last Modified Date Dec 4, 2025 5:35 AM UTC
Pinout / Pin List Click Here (Member Only)

NINA-B416-01B Details

Manufacturer Part Number:
NINA-B416-01B
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MODULE-55
HTS Code:
8542.31.00.30
Factory Lead Time:
12 Weeks
Manufacturer:
u-blox AG
JESD-30 Code:
R-XXMA-N55
Length:
15 mm
Moisture Sensitivity Level:
4
Number of Terminals:
55
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
XMA
Package Equivalence Code:
MODULE,55LEAD(UNSPEC)
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
245
Seated Height-Max:
2.63 mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
1.7 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
HYBRID
Terminal Form:
NO LEAD
Terminal Pitch:
1 mm
Terminal Position:
UNSPECIFIED
Time@Peak Reflow Temperature-Max (s):
40
Width:
10 mm
uPs/uCs/Peripheral ICs Type:
RFSoC

NINA-B416-01B Frequently Asked Questions (FAQs)

The maximum power consumption of the NINA-B416-01B module is around 350mA during transmission and 50mA during reception, according to the datasheet.
To configure the NINA-B416-01B module for BLE mode, you need to set the module to BLE mode using the AT+UBTLE command, and then configure the BLE settings using the AT+BLE command. Refer to the u-blox AT Commands manual for more information.
The range of the NINA-B416-01B module's BLE transmission is up to 200 meters (656 feet) in open space, but this can be affected by obstacles, interference, and other environmental factors.
Yes, you can use the NINA-B416-01B module with a non-u-blox antenna, but you need to ensure that the antenna is compatible with the module's frequency band and has the correct impedance matching. Consult the u-blox Antenna Integration Guide for more information.
You can update the firmware of the NINA-B416-01B module using the u-blox Firmware Update Tool, which can be downloaded from the u-blox website. Follow the instructions provided with the tool to update the firmware.
