NINA-W102-00B-00 - u-blox

Description: STAND-ALONE MULTIRADIO MODULES

Download NINA-W102-00B-00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

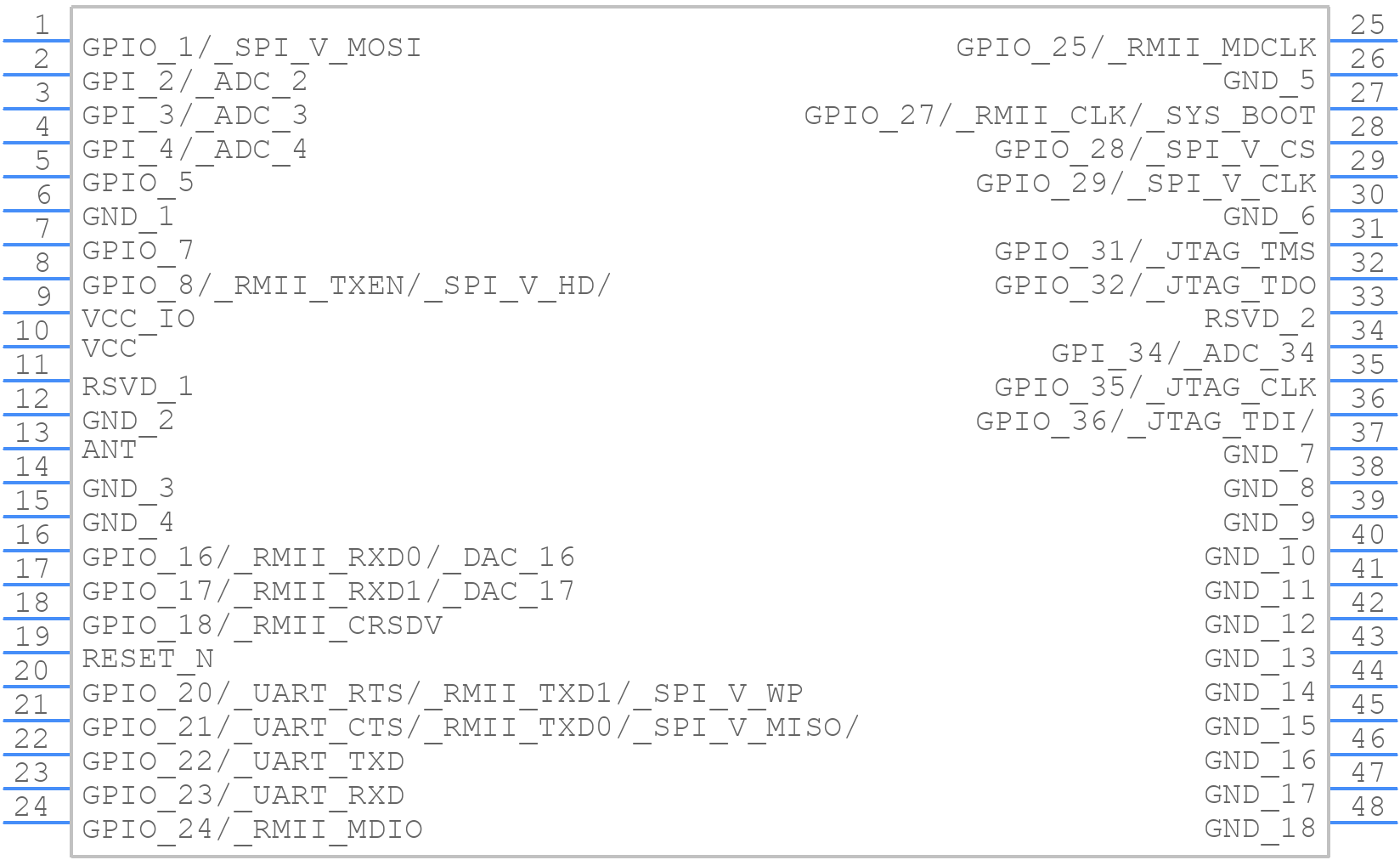

NINA-W102-00B-00 - u-blox - PCB symbol
click to zoom
PCB Footprints

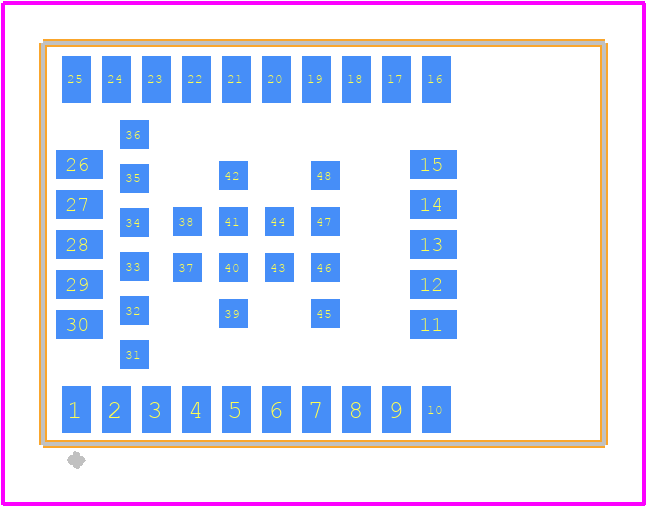

NINA-W102-00B-00 - u-blox PCB footprint - Other - Other - NINA-W102
click to zoom
3D Models
NINA-W102-00B-00 - u-blox - 3D model - Other - NINA-W102
click to zoom

NINA-W102-00B-00 Details

  • Manufacturer Part Number:

    NINA-W102-00B-00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PACKAGE-48

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    u-blox AG

  • YTEOL:

    0

  • JESD-30 Code:

    R-XXMA-B1

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    4.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BUTT

  • Terminal Position:

    UNSPECIFIED

  • Width:

    10 mm

NINA-W102-00B-00 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NINA-W102-00B-00 module is -40°C to +85°C.
  • The NINA-W102-00B-00 module has several power modes, including sleep, deep sleep, and shutdown. To configure these modes, use the AT command set, such as AT+CPWROFF to turn off the module, or AT+CSLEEP to enter sleep mode. Refer to the u-blox AT Commands manual for more information.
  • The maximum data transfer rate for the NINA-W102-00B-00 module is up to 3 Mbps for Wi-Fi and up to 1 Mbps for Bluetooth.
  • The NINA-W102-00B-00 module supports WPA2-PSK encryption for securing Wi-Fi connections. Use the AT+WSEC command to set the encryption method and password. Additionally, use the AT+WSSID command to set the SSID and AT+WPHYP command to set the Wi-Fi phy mode.
  • Yes, the NINA-W102-00B-00 module has a U.FL connector for connecting an external antenna. Make sure to use an antenna that is compatible with the module's frequency range and has the correct impedance matching.
