- Part Number NINA-W102
- Manufacturer u-blox
- Pin Count 48
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - NINA-W102
- Released Date Apr 9, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NINA-W102 Details
-
Manufacturer Part Number:
NINA-W102
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
MODULE-1
-
HTS Code:
8542.39.00.01
-
Manufacturer:
u-blox AG
-
JESD-30 Code:
R-XXMA-B1
-
Length:
14 mm
-
Moisture Sensitivity Level:
4
-
Number of Functions:
1
-
Number of Terminals:
1
NINA-W102 Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for NINA-W102 is -40°C to +85°C, but it can be extended to -40°C to +105°C with some limitations.
-
To configure NINA-W102 for low power consumption, you can use the Power Save Mode (PSM) and Extended Discontinuous Reception (eDRX) features. You can also adjust the transmission power, data rate, and sleep modes to optimize power consumption.
-
Yes, you can use NINA-W102 with a non-u-blox antenna, but it's recommended to use an antenna that is certified by u-blox to ensure optimal performance and compliance with regulatory requirements.
-
To troubleshoot connectivity issues with NINA-W102, check the module's configuration, antenna performance, and signal strength. Use tools like AT commands, debug logs, and network scanning to identify the root cause of the issue.
-
No, NINA-W102 is a 2G/3G/4G LTE Cat 1 module and is not compatible with 5G networks. For 5G connectivity, you would need a different module, such as the u-blox NORA-W1 or NORA-W2.
Trust Checks
Expert Contribution
System Verified
Community Approved
NINA-W102 Overview

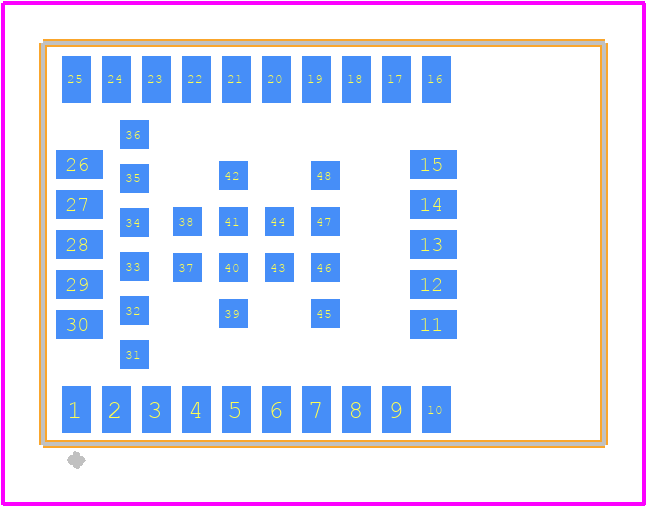

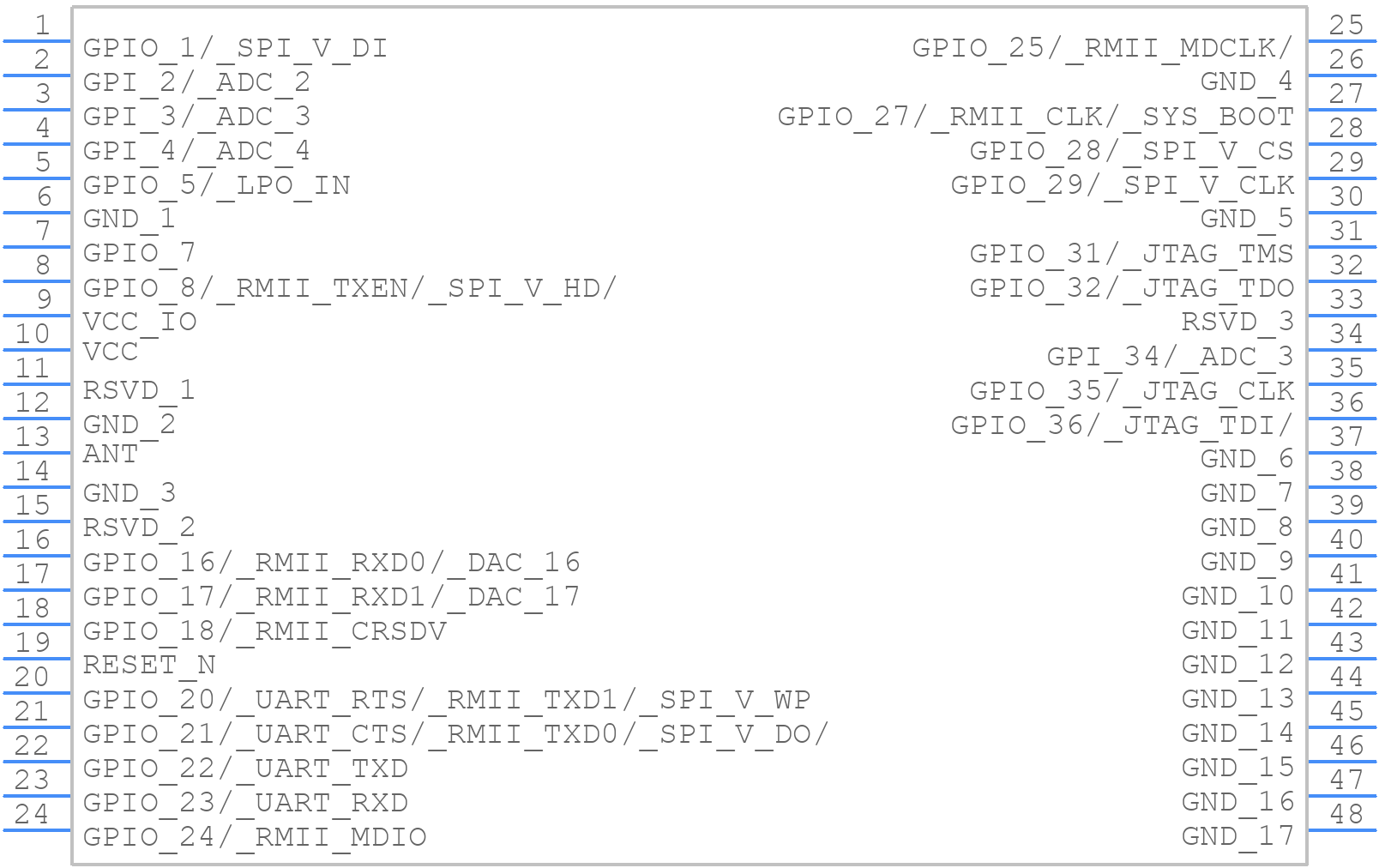

Use the download button to access the NINA-W102 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NINA-,
or try a keyword search, such as Other Telecom ICs
About u-blox
u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
