A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is recommended. Refer to onsemi's application note AND9093/D for more details.
To ensure reliable operation in high-temperature environments, follow the recommended operating conditions, use a suitable thermal interface material, and ensure good airflow around the device. Also, consider using a heat sink or a thermal management system to keep the junction temperature below 150°C.
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage within the recommended operating range of 3.3V ± 10%.
The NIS3071MT3TWG is designed for low-frequency applications up to 100 kHz. While it may work at higher frequencies, its performance and accuracy may degrade. For high-frequency applications, consider using a different device or consulting with onsemi's technical support team.
To prevent ESD damage, handle the device with ESD-protective equipment, such as wrist straps, mats, and bags. During assembly, use ESD-protected workstations and follow proper handling procedures. Also, ensure that the device is properly grounded during assembly and testing.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NIS3071MT3TWG Overview

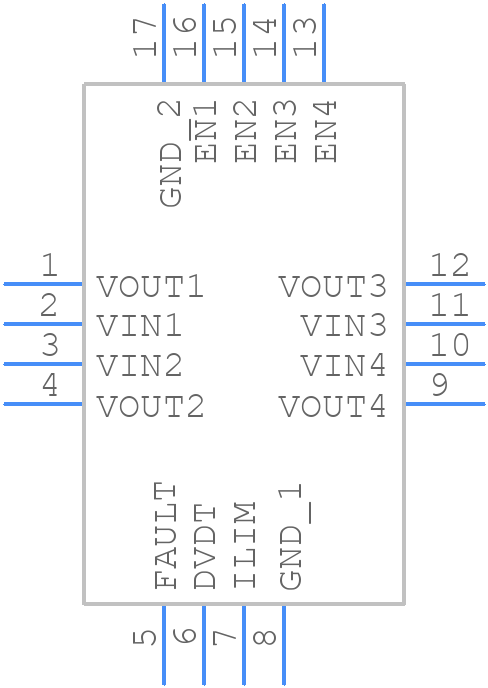

Use the download button to access the NIS3071MT3TWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NIS30,
or try a keyword search, such as Power Management Circuits
