A good PCB layout for the NIS3071MT4TWG should include a solid ground plane, wide traces for power and ground, and a thermal relief pattern under the device. A 4-layer PCB with a thermal via array under the device can help to dissipate heat effectively.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature. The device should be operated within the recommended temperature range of -40°C to 150°C.
The NIS3071MT4TWG has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. A human body model (HBM) of 2 kV and a charged device model (CDM) of 1 kV are recommended for ESD protection.
Yes, the NIS3071MT4TWG is suitable for high-reliability and automotive applications. It's AEC-Q101 qualified and meets the requirements for automotive-grade reliability. However, it's essential to follow proper design and testing guidelines to ensure the device meets the specific application requirements.
To troubleshoot issues with the NIS3071MT4TWG, start by verifying the power supply and input voltage. Check for proper PCB layout and thermal design. Use oscilloscopes and logic analyzers to debug the device's behavior. Consult the datasheet and application notes for guidance on specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NIS3071MT4TWG Overview

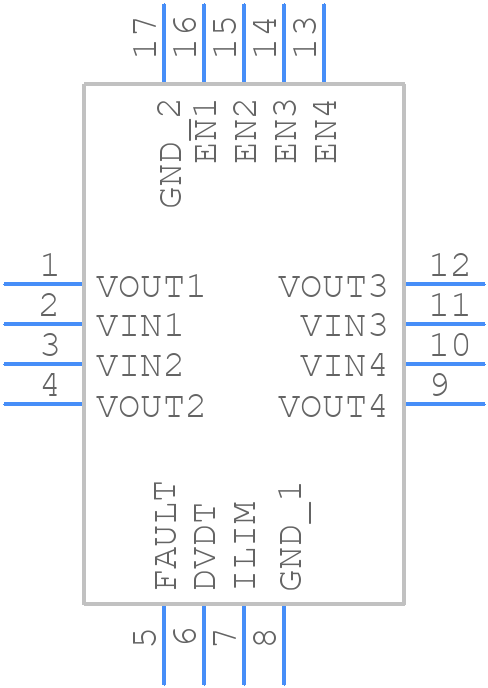

Use the download button to access the NIS3071MT4TWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NIS30,
or try a keyword search, such as Power Management Circuits
