SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Supply Voltage-Max (Vsup):
24 V
Supply Voltage-Min (Vsup):
9 V
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+6.5V
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
NIS4461MT2TXG Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device and to connect it to a heat sink or a thermal plane.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and use a thermal interface material (TIM) with a high thermal conductivity. Additionally, consider using a device with a higher temperature rating or implementing thermal monitoring and shutdown mechanisms.
The recommended soldering conditions for the NIS4461MT2TXG are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350-370°C. It's also recommended to use a solder with a high melting point and to follow the IPC-J-STD-020 standard for soldering.
To handle ESD protection during handling and assembly, it's recommended to use an ESD wrist strap or mat, handle the device by the body or pins, avoid touching the pins or die, and use ESD-protected packaging and storage materials. Additionally, consider implementing ESD protection circuits in the design.
The power-on reset (POR) of the NIS4461MT2TXG can affect system design by requiring a power-up sequence that ensures the device is properly reset before operation. This may involve adding external reset circuits or ensuring that the power supply ramps up slowly enough to allow the POR to complete.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NIS4461MT2TXG Overview

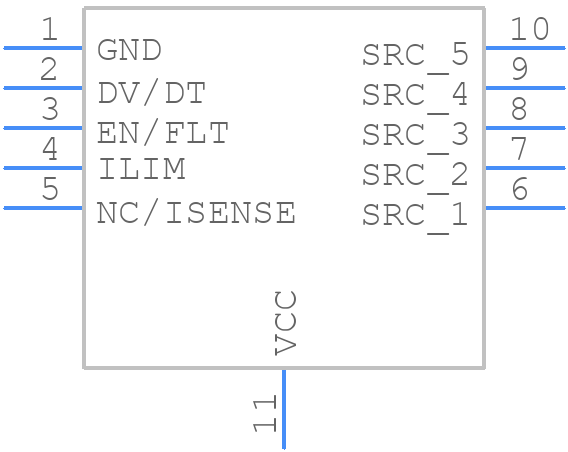

Use the download button to access the NIS4461MT2TXG schematic symbol, PCB footprint, and 3D model.
