A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. The datasheet provides a recommended land pattern, but a more detailed layout guide can be found in the onsemi application note AND9173/D.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including the maximum junction temperature (Tj) of 150°C. Additionally, consider using a heat sink, thermal interface material, and a robust PCB design to minimize thermal resistance.
The NIS4461MT3TXG has built-in ESD protection, but it's still important to follow proper handling and assembly procedures to prevent damage. For latch-up prevention, ensure that the device is operated within the recommended operating conditions, and consider adding external protection circuits if necessary.
To minimize power consumption, operate the device at the lowest possible voltage (VCC) while maintaining the required performance. Additionally, consider using power-saving modes, such as shutdown or standby, when the device is not in use.
The datasheet provides some test and measurement procedures, but for more detailed information, refer to the onsemi application note AND9172/D, which provides guidelines for characterizing and testing the NIS4461MT3TXG.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NIS4461MT3TXG Overview

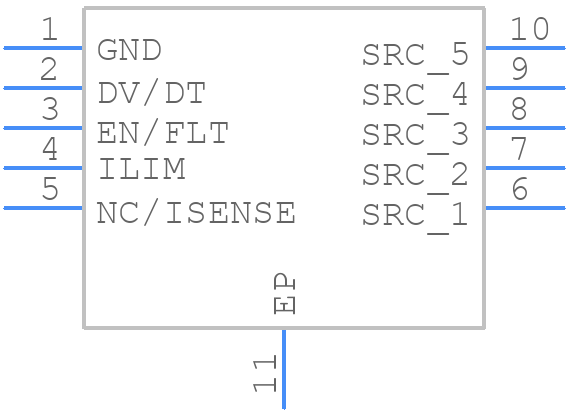

Use the download button to access the NIS4461MT3TXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NIS44,
or try a keyword search, such as Other Signal Circuits
