NIS4461MT4TXG - onsemi

Description: Current Sense (ISENSE); Low Quiescent Current; Tri-state EN/FLT pin; Programmable current limit; Programmable slew rate

Download NIS4461MT4TXG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

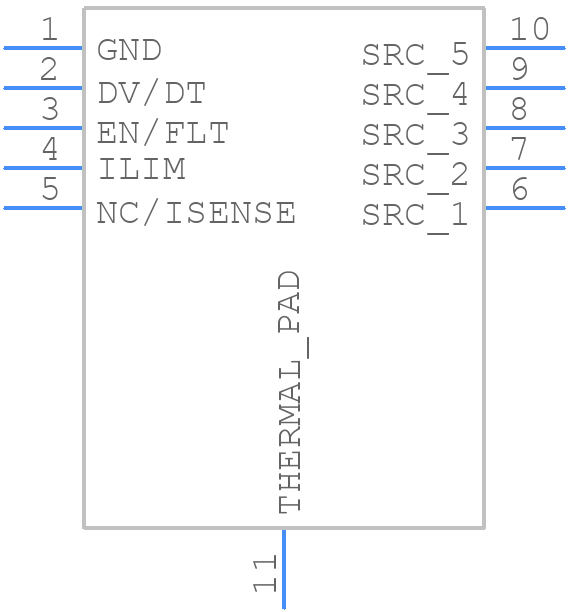

NIS4461MT4TXG - onsemi - PCB symbol
click to zoom
PCB Footprints
NIS4461MT4TXG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN10, 3x3, 0.5P
click to zoom
3D Models
NIS4461MT4TXG - onsemi - 3D model - Small Outline No-lead - WDFN10, 3x3, 0.5P
click to zoom

NIS4461MT4TXG Details

  • Manufacturer Part Number:

    NIS4461MT4TXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-10

  • Package Description:

    WDFN-10

  • Manufacturer Package Code:

    522AA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    eFUSE

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +6.5V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NIS4461MT4TXG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material to improve heat transfer.
  • The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. Operating the device above this voltage can cause permanent damage.
  • Yes, the NIS4461MT4TXG is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, ensure that the device is used within the recommended operating conditions and follows the application notes.
  • Check the power supply voltage, ensure proper pin connections, and verify that the device is not damaged. Also, review the application circuit and layout to ensure they meet the recommended design guidelines.
