NIS5420MT7TXG - onsemi

Description: Current sensing (ISENSE); Low quiescent current; Tri-state EN/FLT pin; Programmable current limit; Programmable slew rate

Download NIS5420MT7TXG Model

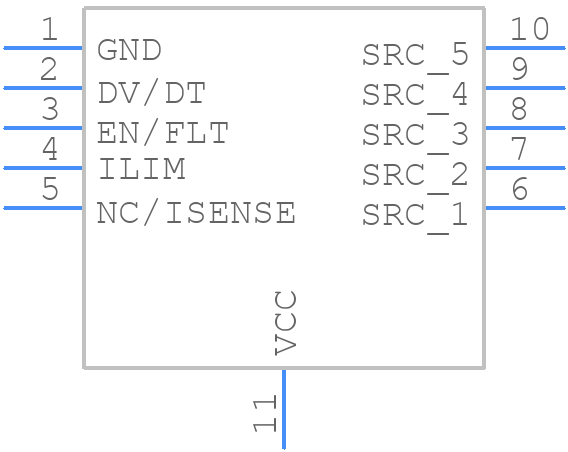

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NIS5420MT7TXG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN10, 3x3, 0.5P
click to zoom
3D Models
NIS5420MT7TXG - onsemi  - 3D model - Small Outline No-lead - WDFN10, 3x3, 0.5P
click to zoom

NIS5420MT7TXG Details

  • Manufacturer Part Number:

    NIS5420MT7TXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-10

  • Package Description:

    WDFN-10

  • Manufacturer Package Code:

    522AA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-02-05

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    eFUSE

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NIS5420MT7TXG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or heat sink to dissipate heat efficiently.
  • Ensure that the device is operated within the recommended voltage and current limits, and that the PCB is designed to minimize thermal resistance. Also, consider using a thermal interface material (TIM) to improve heat transfer.
  • Use a shielded enclosure, keep the device away from antennas and other EMI sources, and use EMI filters or chokes on the input and output lines. Also, ensure that the PCB is designed with EMI mitigation in mind, using techniques such as grounding, shielding, and decoupling.
  • Use the device's low-power modes, reduce the clock frequency, and minimize the number of active circuits. Also, consider using a power management IC to optimize power consumption.
  • Use a 4-wire Kelvin connection for accurate voltage and current measurements. Ensure that the test equipment is calibrated and that the device is operated within the recommended specifications.
