Description:200 mΩ Max RDS(on); Integrated Reverse Current Protection; Adjustable Output Current Limit Protection with Thermal Shutdown; IEC61000−4−2 Level 4 ESD Protection for Vbus up to ±8 kV; Fast Response Overvoltage Clamp Circuit with Selectable Level; Digital Enable with Separate FLAG pins; Integrated Current Monitoring; Both Latching and Auto−Retry Options Available; NIV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable; These
The recommended PCB layout involves keeping the device away from high-current paths, using a solid ground plane, and placing thermal vias under the device. For thermal management, a heat sink or thermal pad is recommended, and the PCB should be designed to dissipate heat efficiently.
To ensure EMC, follow proper PCB layout and design guidelines, use shielding and filtering components, and ensure that the device is properly decoupled from the power supply. Additionally, consider using a common-mode choke and EMI filters to reduce electromagnetic interference.
The input capacitor should be a low-ESR ceramic capacitor with a value between 1-10uF, while the output capacitor should be a low-ESR electrolytic capacitor with a value between 10-100uF. The capacitor selection should be based on the specific application requirements and operating conditions.
To troubleshoot and debug issues, use a combination of visual inspection, voltage and current measurements, and oscilloscope analysis. Check for proper power supply, input and output voltage levels, and signal integrity. Consult the datasheet and application notes for specific guidance on debugging and troubleshooting.
The device has a maximum junction temperature of 150°C. Thermal derating is required above 50°C, and the device should be operated within the recommended temperature range to ensure reliability and performance. Consult the datasheet for specific thermal derating curves and guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NIS6150MT1TXG Overview

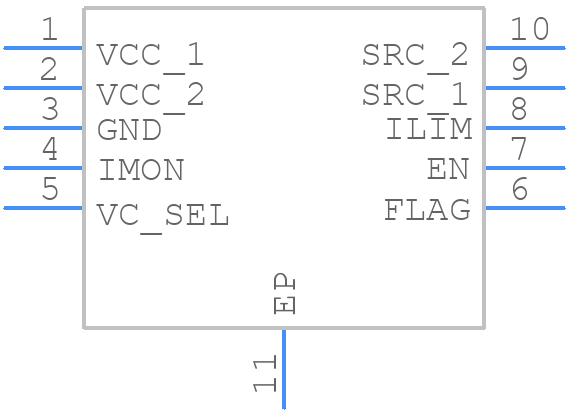

Use the download button to access the NIS6150MT1TXG schematic symbol, PCB footprint, and 3D model.
