Description:200 mΩ Max RDS(on); Integrated Reverse Current Protection; Adjustable Output Current Limit Protection with Thermal Shutdown; IEC61000−4−2 Level 4 ESD Protection for Vbus up to ±8 kV; Fast Response Overvoltage Clamp Circuit with Selectable Level; Digital Enable with Separate FLAG pins; Integrated Current Monitoring; Both Latching and Auto−Retry Options Available; NIV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable; These
The recommended PCB layout for optimal thermal performance involves using a 2-layer or 4-layer PCB with a solid ground plane, and placing thermal vias under the device to dissipate heat efficiently. Additionally, it is recommended to keep the PCB traces as short as possible and use a thermal pad under the device.
To ensure reliable operation in high-temperature environments, it is recommended to follow the recommended operating conditions, use a heat sink or thermal pad, and ensure good airflow around the device. Additionally, it is recommended to derate the device's power dissipation according to the temperature derating curve provided in the datasheet.
The recommended soldering conditions for the NIS6150MT2TXG involve using a soldering iron with a temperature of 250°C to 260°C, and a soldering time of 3 to 5 seconds. It is also recommended to use a solder with a melting point of 217°C to 221°C.
To troubleshoot issues with the device's output voltage, it is recommended to check the input voltage, output load, and output voltage feedback loop. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the output voltage feedback loop is properly connected and configured.
The ESD protection recommendations for the NIS6150MT2TXG involve handling the device by the body or using an ESD wrist strap, storing the device in an ESD-protected environment, and using ESD-protected equipment during assembly and testing.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NIS6150MT2TXG Overview

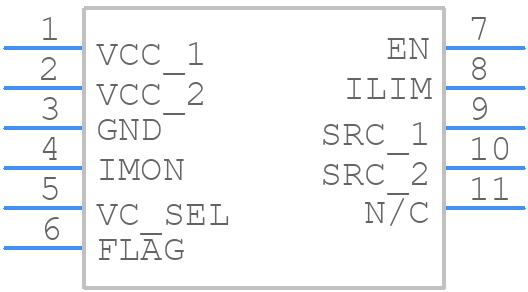

Use the download button to access the NIS6150MT2TXG schematic symbol, PCB footprint, and 3D model.
