Description:These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant; NIV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable; Both Latching and Auto−Retry Options Available; Integrated Current Monitoring; Digital Enable with Separate FLAG for Fault Identification; Fast Response Overvoltage Clamp Circuit with Selectable Level; IEC61000−4−2 Level 4 ESD Protection for Vbus up to ±8 kV; Adjustable Output Current Limit Protec
The recommended PCB layout and thermal management for the NIS6350MT1TXG can be found in the onsemi application note AND9173/D, which provides guidelines for thermal design, PCB layout, and component selection.
To ensure EMC, follow the guidelines in the onsemi application note AND9174/D, which provides recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI).
The maximum operating temperature range for the NIS6350MT1TXG is -40°C to 150°C, as specified in the datasheet. However, it's essential to consider the derating curves and thermal management to ensure reliable operation.
Yes, the NIS6350MT1TXG is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q101 and is manufactured using a process that is compliant with IATF 16949.
For troubleshooting, refer to the onsemi application note AND9175/D, which provides guidelines for fault detection, debugging, and failure analysis. Additionally, contact onsemi's technical support for assistance with specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NIS6350MT1TXG Overview

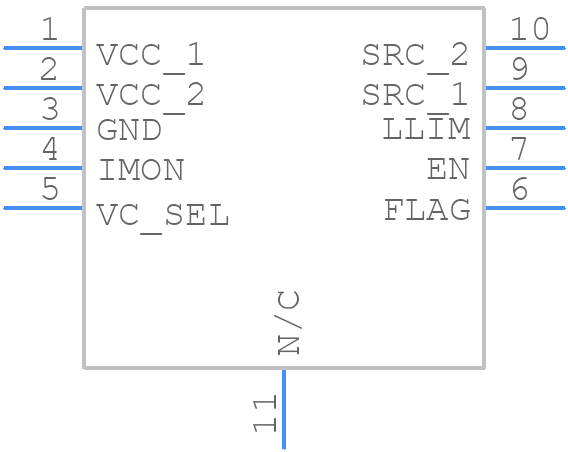

Use the download button to access the NIS6350MT1TXG schematic symbol, PCB footprint, and 3D model.
