NIS6350MT2TXG - onsemi

Description: These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant; NIV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable; Both Latching and Auto−Retry Options Available; Integrated Current Monitoring; Digital Enable with Separate FLAG for Fault Identification; Fast Response Overvoltage Clamp Circuit with Selectable Level; IEC61000−4−2 Level 4 ESD Protection for Vbus up to ±8 kV; Adjustable Output Current Limit Protec

Download NIS6350MT2TXG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

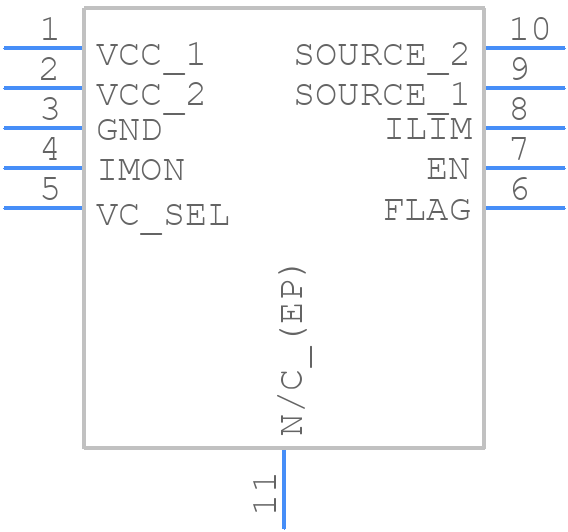

Symbol
NIS6350MT2TXG - onsemi - PCB symbol
click to zoom
PCB Footprints
NIS6350MT2TXG - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFNW10, 3x3, 0.5P
click to zoom
3D Models
NIS6350MT2TXG - onsemi - 3D model - Small Outline No-lead - WDFNW10, 3x3, 0.5P
click to zoom

NIS6350MT2TXG Details

  • Manufacturer Part Number:

    NIS6350MT2TXG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    WDFNW-10

  • Manufacturer Package Code:

    515AB

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.8 mA

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

NIS6350MT2TXG Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for optimal performance can be found in the ON Semiconductor application note AND9093/D, which provides guidelines for thermal design and layout considerations.
  • To ensure EMC, follow the guidelines in the ON Semiconductor application note AND9095/D, which provides recommendations for electromagnetic compatibility and electromagnetic interference (EMI) mitigation.
  • The recommended soldering and assembly techniques can be found in the ON Semiconductor application note AND9094/D, which provides guidelines for surface mount assembly and soldering of the device.
  • Handle and store the NIS6350MT2TXG in accordance with the ESD precautions outlined in the ON Semiconductor application note AND9092/D, which provides guidelines for ESD protection and handling.
  • The NIS6350MT2TXG has undergone various reliability and qualification tests, including AEC-Q101 and IATF 16949, which are outlined in the ON Semiconductor reliability report.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NIS6350MT2TXG Overview

Use the download button to access the NIS6350MT2TXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NIS63, or try a keyword search, such as Power Management Circuits
