Description:60 mΩ Max RDS(on); Integrated Reverse Current Protection; Adjustable Output Current Limit Protection with Thermal Shutdown; IEC61000−4−2 Level 4 ESD Protection for Vbus up to ±18 kV; Fast Response Overvoltage Clamp Circuit with Selectable Level; Internal Undervoltage Lockout Circuit; Digital Enable with Separate FLAG for Fault Identification; Integrated Current Monitoring; Both Latching and Auto−Retry Options Available; NIV Prefix for Automotive and Other Applications Requiring Unique Site and Control Chang
A good PCB layout should ensure minimal thermal resistance, use thermal vias, and keep the device away from heat sources. A heat sink or thermal pad can be used to improve heat dissipation. Consult onsemi's application notes and thermal management guidelines for more information.
Follow onsemi's EMC/EMI guidelines, use proper shielding, and ensure the device is placed in a Faraday cage or shielded enclosure. Implement filtering and decoupling on the input and output lines, and use a common-mode choke to reduce EMI.
The NIS6351MT2TXG has a high reliability rating, with a FIT (Failure In Time) rate of <10 FIT/MHr. However, the actual failure rate depends on various factors, such as operating conditions, quality of the PCB, and manufacturing processes. Consult onsemi's reliability reports and application notes for more information.
The NIS6351MT2TXG is rated for operation up to 150°C. However, derating factors apply above 125°C. Consult the datasheet and onsemi's application notes for derating factors and thermal management guidelines to ensure reliable operation in high-temperature environments.
Use a curve tracer or a parameter analyzer to measure the device's electrical characteristics. Ensure proper probing and connection techniques to avoid damaging the device. Consult onsemi's application notes and test procedures for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NIS6351MT2TXG Overview

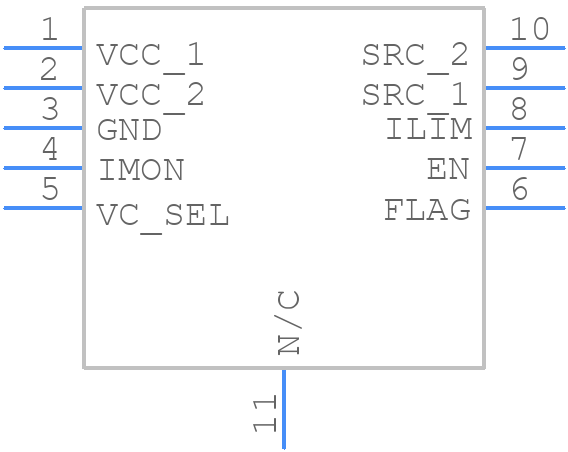

Use the download button to access the NIS6351MT2TXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NIS63,
or try a keyword search, such as Power Management Circuits
