A good PCB layout for optimal thermal performance involves placing thermal vias under the device, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the device and to connect it to a thermal plane or a heat sink.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, provide adequate heat sinking, and use a thermal interface material (TIM) with a high thermal conductivity. Additionally, consider using a thermistor or a temperature sensor to monitor the device temperature and implement thermal protection mechanisms if necessary.
The NIS6452MT1TWG has built-in ESD protection diodes on all pins, which can withstand up to 2 kV of electrostatic discharge according to the Human Body Model (HBM). To prevent latch-up, it's recommended to follow proper PCB design guidelines, use a ground plane, and avoid voltage spikes or transients on the power supply lines.
Yes, the NIS6452MT1TWG is suitable for high-reliability and automotive applications. It's manufactured using a robust process, and onsemi provides a range of reliability and quality data, including AEC-Q100 qualification, to support its use in demanding environments.
To troubleshoot issues with the NIS6452MT1TWG, start by reviewing the device's operating conditions, power supply, and PCB layout. Check for any signs of overheating, electrical overstress, or ESD damage. Use oscilloscopes or logic analyzers to monitor the device's signals and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NIS6452MT1TWG Overview

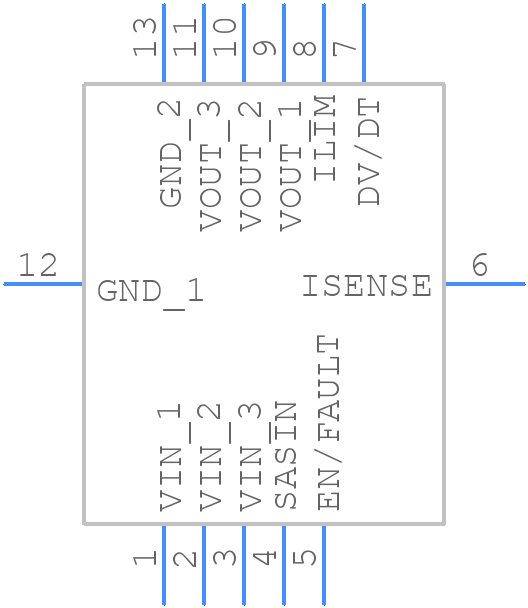

Use the download button to access the NIS6452MT1TWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NIS64,
or try a keyword search, such as Power Management Circuits
