NIV1241MTWTAG - onsemi

Description: 24V Low Capacitance ESD Protection with short−to−battery blocking for Automotive High Speed Data Lines

Download NIV1241MTWTAG Model

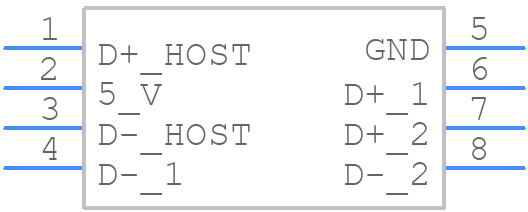

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NIV1241MTWTAG - onsemi PCB footprint - Other - Other - NIV1241MTWTAG-3
click to zoom
3D Models
NIV1241MTWTAG - onsemi  - 3D model - Other - NIV1241MTWTAG-3
click to zoom

NIV1241MTWTAG Details

  • Manufacturer Part Number:

    NIV1241MTWTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFNW6 2.0x2.2, 0.65P

  • Package Description:

    WDFNW-6

  • Manufacturer Package Code:

    515AK

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Date Of Intro:

    2020-08-12

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Additional Feature:

    ULTRA LOW CAPACITANCE

  • Breakdown Voltage-Max:

    28 V

  • Breakdown Voltage-Min:

    24 V

  • Breakdown Voltage-Nom:

    25 V

  • Clamping Voltage-Max:

    43 V

  • Configuration:

    COMMON ANODE, 2 ELEMENTS, 2 CHANNEL

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-N6

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    688 W

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    UNIDIRECTIONAL

  • Reference Standard:

    AEC-Q101; IEC-61000-4-2

  • Rep Pk Reverse Voltage-Max:

    23.5 V

  • Reverse Current-Max:

    0.5 µA

  • Reverse Test Voltage:

    24 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

NIV1241MTWTAG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Implement a robust thermal management system, including a heat sink, thermal interface material, and a cooling fan if necessary. Monitor the device's junction temperature and adjust the system design accordingly.
  • Use X7R or X5R ceramic capacitors with a voltage rating of 10V or higher. For input capacitors, use 10uF to 22uF values, and for output capacitors, use 10uF to 47uF values.
  • Use a shielded enclosure, keep the device and surrounding components away from the PCB edge, and use a common-mode choke or ferrite bead on the input lines. Ensure proper grounding and decoupling of the device.
  • Apply the input voltage (VIN) first, followed by the enable signal (EN). Ensure the input voltage is stable before applying the enable signal.
